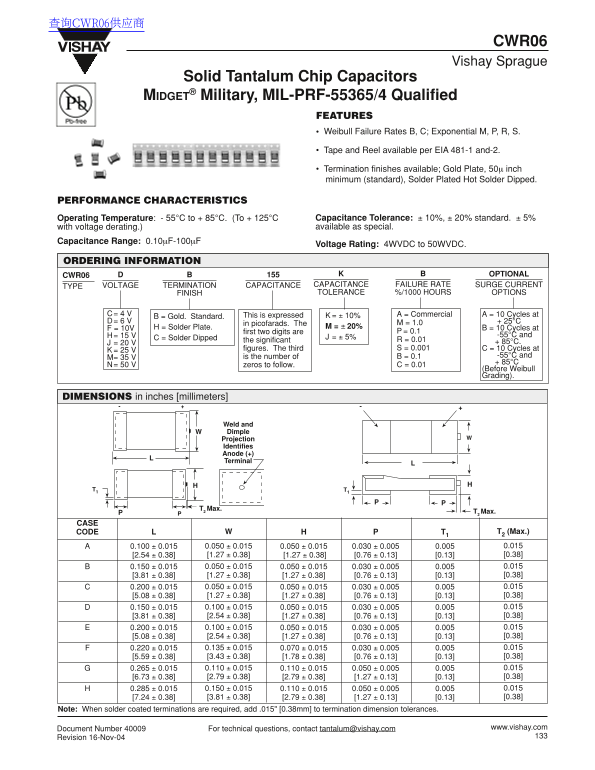

Page 1 Text Content
查询CWR06供应商
CWR06 Vishay Sprague
Solid Tantalum Chip Capacitors MIDGET® Military, MIL-PRF-55365/4 Qualified
FEATURES Weibull Failure Rates B, C; Exponential M, P, R, S.
• Tape and Reel available per EIA 481-1 and-2.
• Termination finishes available; Gold Plate, 50µ inch minimum (standard), Solder Plated Hot Solder Dipped.
PERFORMANCE CHARACTERISTICS
Operating Temperature: - 55°C to + 85°C. (To + 125°C Capacitance Tolerance: ± 10%, ± 20% standard. ± 5% with voltage derating.) available as special.
Capacitance Range: 0.10µF-100µF
Voltage Rating: 4WVDC to 50WVDC.
ORDERING INFORMATION
CWR06 OPTIONAL
VOLTAGE TERMINATION CAPACITANCE CAPACITANCE FAILURE RATE SURGE CURRENT
FINISH TOLERANCE %/1000 HOURS OPTIONS
C= 4 V This is expressed = ± 10% A = Commercial A = 10 Cycles at
B = Gold. Standard.
in picofarads. The
H = Solder Plate. M = ± 20% B = 10 Cycles at
first two digits are = 0.1
H= 15 V -55°C and
C = Solder Dipped = ± 5%
the significant R = 0.01
figures. The third S = 0.001 C = 10 Cycles at
is the number of B = 0.1 -55°C and
N= 50 V zeros to follow. C = 0.01
(Before Weibull Grading).
DIMENSIONS in inches [millimeters]
Weld and Dimple Projection Identifies Anode (+) Terminal
T2 Max.
T2 Max.
CODE T1 T2 (Max.) 0.100 ± 0.015 0.050 ± 0.015 0.050 ± 0.015 0.030 ± 0.005 0.005 0.015 [2.54 ± 0.38] [1.27 ± 0.38] [1.27 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.150 ± 0.015 0.050 ± 0.015 0.050 ± 0.015 0.030 ± 0.005 0.005 0.015 [3.81 ± 0.38] [1.27 ± 0.38] [1.27 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.200 ± 0.015 0.050 ± 0.015 0.050 ± 0.015 0.030 ± 0.005 0.005 0.015 [5.08 ± 0.38] [1.27 ± 0.38] [1.27 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.150 ± 0.015 0.100 ± 0.015 0.050 ± 0.015 0.030 ± 0.005 0.005 0.015 [3.81 ± 0.38] [2.54 ± 0.38] [1.27 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.200 ± 0.015 0.100 ± 0.015 0.050 ± 0.015 0.030 ± 0.005 0.005 0.015 [5.08 ± 0.38] [2.54 ± 0.38] [1.27 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.220 ± 0.015 0.135 ± 0.015 0.070 ± 0.015 0.030 ± 0.005 0.005 0.015 [5.59 ± 0.38] [3.43 ± 0.38] [1.78 ± 0.38] [0.76 ± 0.13] [0.13] [0.38] 0.265 ± 0.015 0.110 ± 0.015 0.110 ± 0.015 0.050 ± 0.005 0.005 0.015 [6.73 ± 0.38] [2.79 ± 0.38] [2.79 ± 0.38] [1.27 ± 0.13] [0.13] [0.38] 0.285 ± 0.015 0.150 ± 0.015 0.110 ± 0.015 0.050 ± 0.005 0.005 0.015 [7.24 ± 0.38] [3.81 ± 0.38] [2.79 ± 0.38] [1.27 ± 0.13] [0.13] [0.38]
Note: When solder coated terminations are required, add .015" [0.38mm] to termination dimension tolerances.
Document Number 40009 For technical questions, contact [email protected] www.vishay.com
Revision 16-Nov-04
