BUD636A Vishay Telefunken

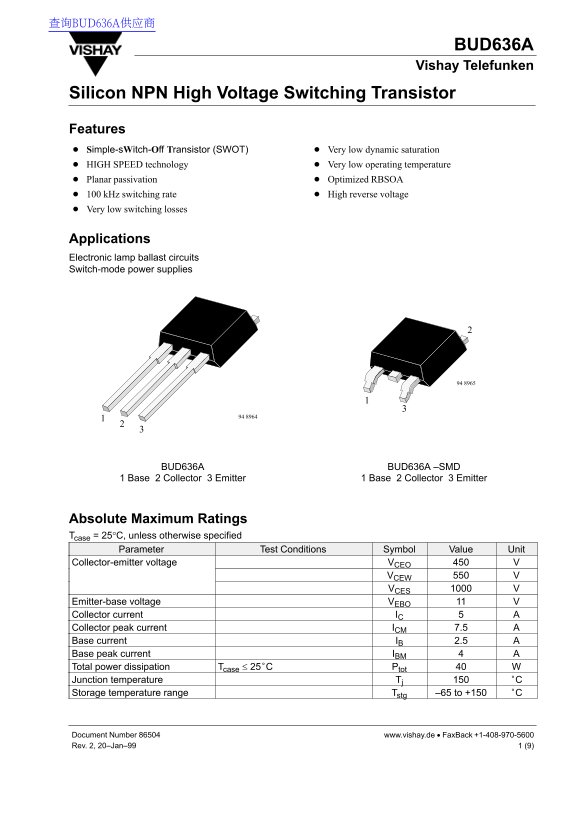

Silicon NPN High Voltage Switching Transistor Features Simple-s Witch-Off Transistor (SWOT) Very low dynamic saturation HIGH SPEED technology Very low operating temperature Planar passivation Optimized RBSOA 100 k Hz switching rate High reverse voltage Very low switching losses

Applications Electronic lamp ballast circuits Switch-mode power supplies

BUD636A BUD636A –SMD

1 Base 2 Collector 3 Emitter 1 Base 2 Collector 3 Emitter

Absolute Maximum Ratings Tcase = 25°C, unless otherwise specified

Parameter Test Conditions Symbol Value Unit

Collector-emitter voltage VCEO

VCEW VCES

Emitter-base voltage VEBO Collector current IC Collector peak current ICM 7.5 Base current IB 2.5 Base peak current IBM Total power dissipation Tcase ≤ 25C Ptot Junction temperature Tj Storage temperature range Tstg –65 to +150

Document Number 86504 www.vishay.de • Fax Back +1-408-970-5600 Rev. 2, 20–Jan–99 1 (9)

Page Summary Contents For Vishay Bud636A Specifications and User Guide

Page 1 查询BUD636A供应商 BUD636A Vishay Telefunken Silicon NPN High Voltage Switching Transistor Features Simple-s Witch-Off Transistor (SWOT) Very low dynamic saturation HIGH SPEED technology Very low operating ...
Page 2 BUD636A Vishay Telefunken Maximum Thermal Resistance Tcase = 25°C, unless otherwise specified Parameter Test Conditions Symbol Value Unit Junction case Rth JC 3.12 K/W Electrical Characteristics Tcase...
Page 3 BUD636A Vishay Telefunken VS2 Imeasure IB IC LC VS1 to V(BR)CEO V(BR)CEO 3 Pulses I(BR)R 0.1 tp ms Figure 1. Test circuit for V(BR)CE0 IB IB1 RC IC IB1 VCE VCC IB 0.9 IC 0.1 IC td ts tf ton toff (1) F...
Page 4 BUD636A Vishay Telefunken 94 8853 IB IB1 (2) IC IB1 VCE IB 0.9 IC Vclamp VCC 0.1 IC (1) Fast electronic switch (2) Fast recovery rectifier Figure 3. Test circuit for switching characteristics – induct...
Page 5 BUD636A Vishay Telefunken or ar ur re nt ra ns fe at io ol le ct or ur re nt ol le ct or ur re nt FE Typical Characteristics (Tcase = 25_C unless otherwise specified) 0.1 x IC < IB2 < 0.5 x IC 0...
Page 6 BUD636A to ra ge im to ra ge im Vishay Telefunken saturated switching saturated switching R–load R–load IC = 0.8A, IB1 = 0.1A IC = 0.8A, IB1 = 0.1A Tcase = 125°C Tcase = 125°C 95 10517 –IB2/IB1 95 105...
Page 7 BUD636A Vishay Telefunken Dimensions in mm Document Number 86504 www.vishay.de • Fax Back +1-408-970-5600 Rev. 2, 20–Jan–99 7 (9)
Page 8 BUD636A Vishay Telefunken For ordering TO 252 add SMD to the type number (i.e. BUD636A –SMD) www.vishay.de • Fax Back +1-408-970-5600 Document Number 86504 Rev. 2, 20–Jan–998 (9)
Page 9 BUD636A Vishay Telefunken Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statutory requirements...
