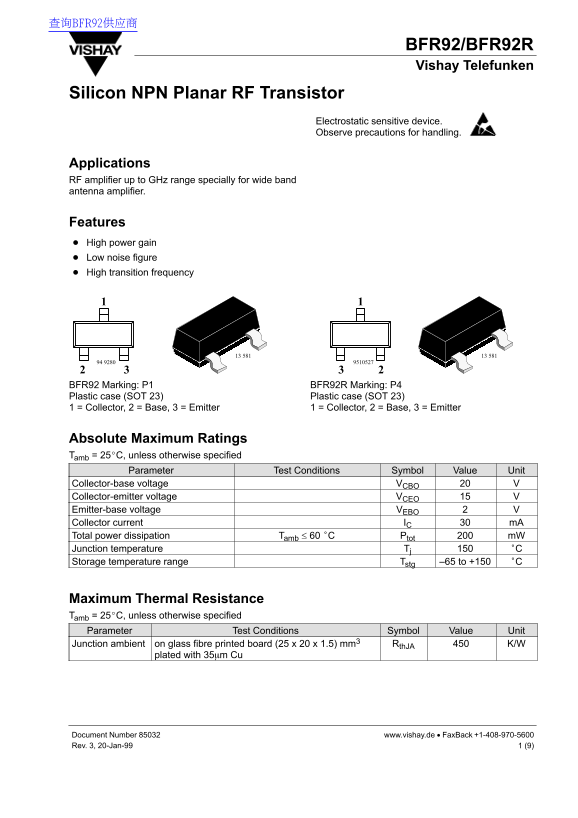

BFR92/BFR92R Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device. Observe precautions for handling.
Applications RF amplifier up to GHz range specially for wide band antenna amplifier.
Features High power gain Low noise figure High transition frequency
BFR92 Marking: P1 BFR92R Marking: P4 Plastic case (SOT 23) Plastic case (SOT 23) 1 = Collector, 2 = Base, 3 = Emitter 1 = Collector, 2 = Base, 3 = Emitter
Absolute Maximum Ratings Tamb = 25C, unless otherwise specified
Parameter Test Conditions Symbol Value Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC m A Total power dissipation Tamb ≤ 60 C Ptot m W Junction temperature Tj Storage temperature range Tstg –65 to +150
Maximum Thermal Resistance Tamb = 25C, unless otherwise specified Parameter Test Conditions Symbol Value Unit Junction ambient on glass fibre printed board (25 x 20 x 1.5) mm3 Rth JA K/W
plated with 35m Cu
