Vishay BFP92A BFP92AW Data Sheet
Summary
The BFP92A/BFP92AW is a high-performance Silicon NPN planar RF Transistor designed for demanding RF amplification applications, particularly wide band antenna systems across the GHz range. This technical documentation provides comprehensive electrical, AC, and S-parameter characteristics—including gain, noise figure, and transition frequency curves up to 3000 MHz. It serves RF engineers, circuit designers, and technicians who require reliable component data for developing high-frequency amplification circuits.

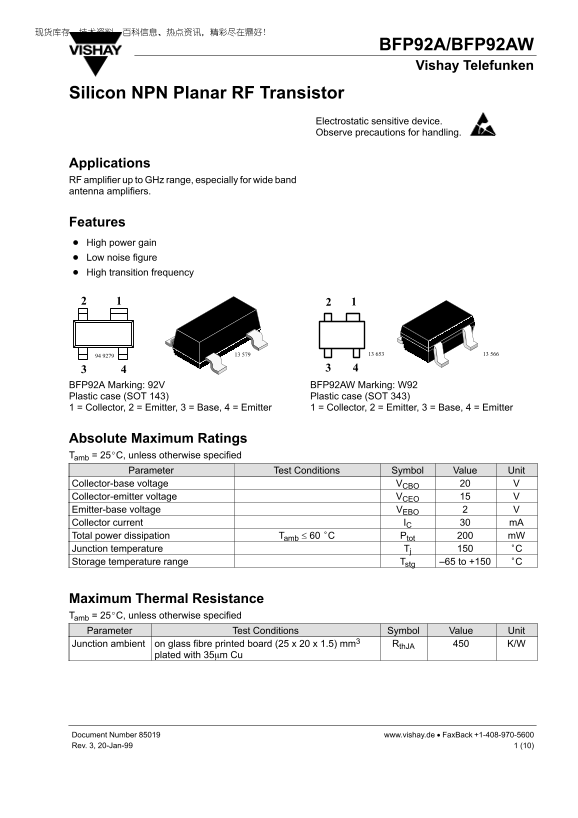

Page 1 Text Content
BFP92A/BFP92AW Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device. Observe precautions for handling.
Applications RF amplifier up to GHz range, especially for wide band antenna amplifiers.
Features High power gain Low noise figure High transition frequency
BFP92A Marking: 92V BFP92AW Marking: W92 Plastic case (SOT 143) Plastic case (SOT 343) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter
Absolute Maximum Ratings Tamb = 25C, unless otherwise specified
Parameter Test Conditions Symbol Value Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC m A Total power dissipation Tamb ≤ 60 C Ptot m W Junction temperature Tj Storage temperature range Tstg –65 to +150
Maximum Thermal Resistance Tamb = 25C, unless otherwise specified Parameter Test Conditions Symbol Value Unit Junction ambient on glass fibre printed board (25 x 20 x 1.5) mm3 Rth JA K/W
plated with 35m Cu
Document Number 85019 www.vishay.de • Fax Back +1-408-970-5600
Rev. 3, 20-Jan-99 1 (10)
