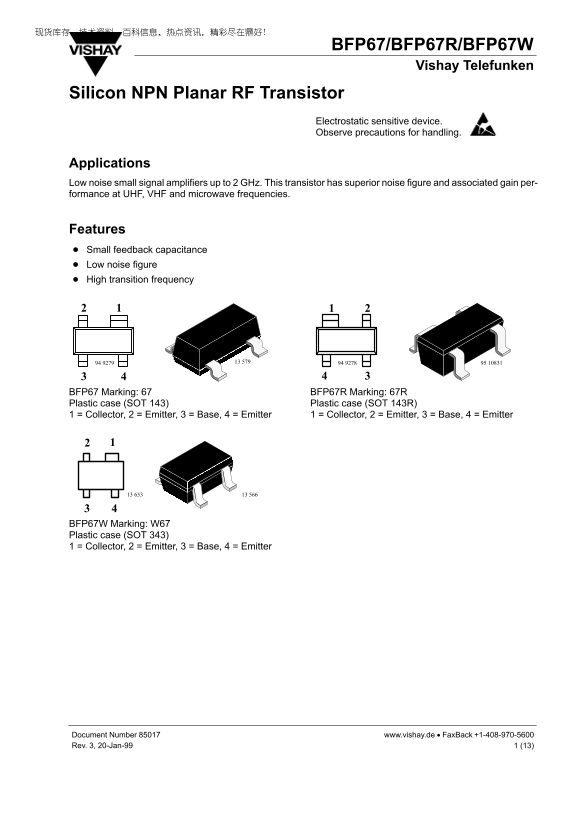

BFP67/BFP67R/BFP67W
Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device. Observe precautions for handling.
Applications Low noise small signal amplifiers up to 2 GHz. This transistor has superior noise figure and associated gain per- formance at UHF, VHF and microwave frequencies.
Features Small feedback capacitance Low noise figure High transition frequency
BFP67 Marking: 67 BFP67R Marking: 67R Plastic case (SOT 143) Plastic case (SOT 143R) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter
BFP67W Marking: W67 Plastic case (SOT 343) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter
