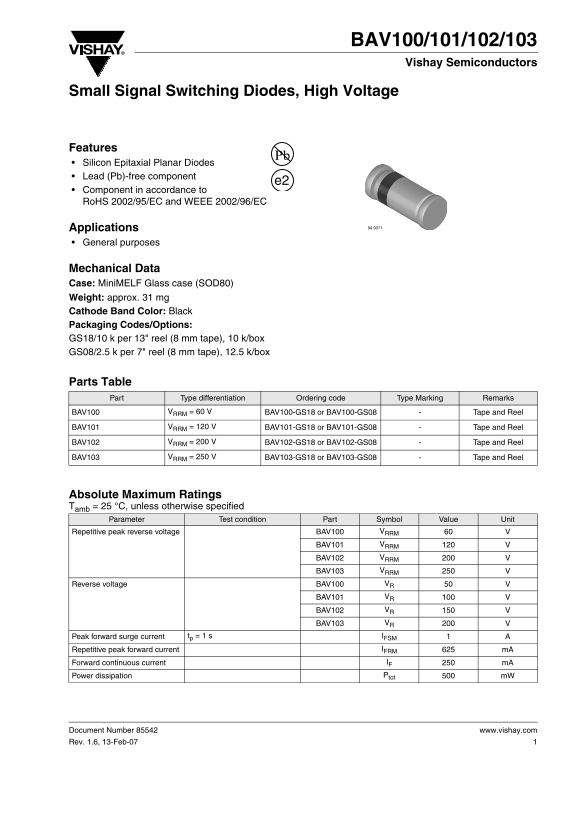

BAV100/101/102/103 Vishay Semiconductors
Small Signal Switching Diodes, High Voltage
Features Silicon Epitaxial Planar Diodes Lead (Pb)-free component
Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Applications 94 9371
General purposes
Mechanical Data Case: Mini MELF Glass case (SOD80) Weight: approx. 31 mg Cathode Band Color: Black Packaging Codes/Options: GS18/10 k per 13" reel (8 mm tape), 10 k/box GS08/2.5 k per 7" reel (8 mm tape), 12.5 k/box
Parts Table Part Type differentiation Ordering code Type Marking Remarks
BAV100 VRRM = 60 V BAV100-GS18 or BAV100-GS08 Tape and Reel
BAV101 VRRM = 120 V BAV101-GS18 or BAV101-GS08 Tape and Reel
BAV102 VRRM = 200 V BAV102-GS18 or BAV102-GS08 Tape and Reel
BAV103 VRRM = 250 V BAV103-GS18 or BAV103-GS08 Tape and Reel
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Part Symbol Value Unit
Repetitive peak reverse voltage BAV100 VRRM BAV101 VRRM BAV102 VRRM BAV103 VRRM Reverse voltage BAV100 VR BAV101 VR BAV102 VR BAV103 VR Peak forward surge current tp = 1 s IFSM Repetitive peak forward current IFRM m A Forward continuous current IF m A Power dissipation Ptot m W
Document Number 85542 www.vishay.com Rev. 1.6, 13-Feb-07
Page Summary Contents For Vishay Bav100 101 102 103 Data Sheet User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 5 |
| File Size | 133.03 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the key electrical ratings for this series of diodes?
The devices feature various Repetitive Peak Reverse Voltages (RRM), ranging from 60V (BAV100) up to 250V (BAV103).
Does the product comply with environmental standards?
Yes, these components are Lead-free and comply with both RoHS 2002/95/EC and WEEE 2002/96/EC directives.
What is the recommended thermal usage parameter for mounting?
The typical thermal resistance junction to ambient air on a PC board ($R_{thJA}$) is listed as 500 K/W.
Are these components suitable for medical life-support applications?
No, the products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
