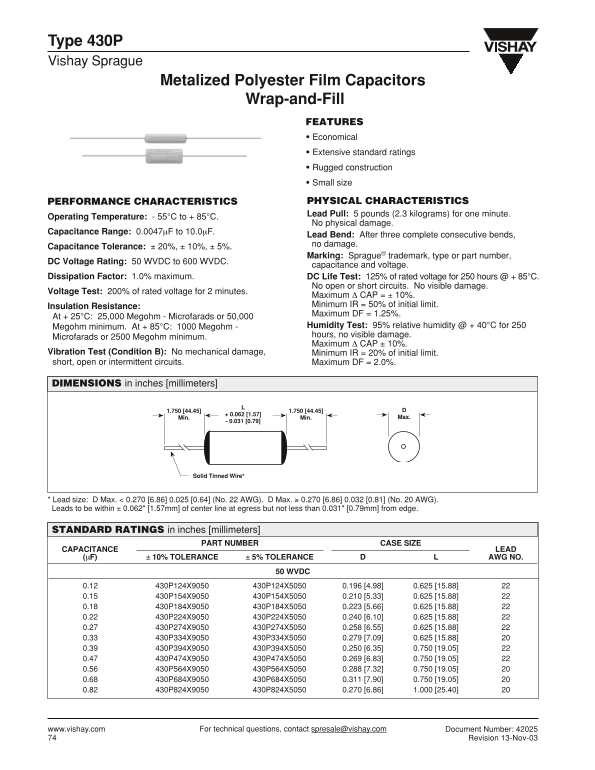

Type 430P Vishay Sprague
Metalized Polyester Film Capacitors
Wrap-and-Fill
FEATURES Economical Extensive standard ratings • Rugged construction • Small size
PERFORMANCE CHARACTERISTICS PHYSICAL CHARACTERISTICS Lead Pull: 5 pounds (2.3 kilograms) for one minute.
Operating Temperature: - 55°C to + 85°C.
No physical damage.
Capacitance Range: 0.0047µF to 10.0µF.
Lead Bend: After three complete consecutive bends, no damage.
Capacitance Tolerance: ± 20%, ± 10%, ± 5%.
Marking: Sprague® trademark, type or part number,
DC Voltage Rating: 50 WVDC to 600 WVDC.
capacitance and voltage.
Dissipation Factor: 1.0% maximum. DC Life Test: 125% of rated voltage for 250 hours @ + 85°C.
No open or short circuits. No visible damage.
Voltage Test: 200% of rated voltage for 2 minutes.
Maximum ∆ CAP = ± 10%. Insulation Resistance: Minimum IR = 50% of initial limit. Maximum DF = 1.25%.
At + 25°C: 25,000 Megohm - Microfarads or 50,000
Megohm minimum. At + 85°C: 1000 Megohm - Humidity Test: 95% relative humidity @ + 40°C for 250 hours, no visible damage.
Microfarads or 2500 Megohm minimum.
Maximum ∆ CAP ± 10%.
Vibration Test (Condition B): No mechanical damage, Minimum IR = 20% of initial limit. short, open or intermittent circuits. Maximum DF = 2.0%.
DIMENSIONS in inches [millimeters]
Min. Min. Max.
Solid Tinned Wire*
* Lead size: D Max. < 0.270 [6.86] 0.025 [0.64] (No. 22 AWG). D Max. ≥ 0.270 [6.86] 0.032 [0.81] (No. 20 AWG). Leads to be within ± 0.062" [1.57mm] of center line at egress but not less than 0.031" [0.79mm] from edge.
STANDARD RATINGS in inches [millimeters]
PART NUMBER CASE SIZE
CAPACITANCE LEAD (µF) ± 10% TOLERANCE ± 5% TOLERANCE AWG NO.
50 WVDC
www.vishay.com For technical questions, contact [email protected] Document Number: 42025
Revision 13-Nov-03
