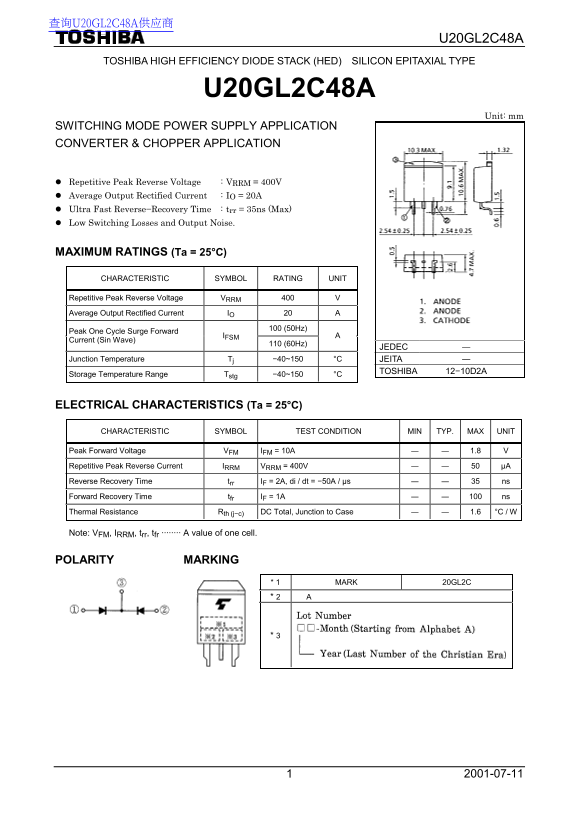

Page 1 Text Content
查询U20GL2C48A供应商
U20GL2C48A
TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE
U20GL2C48A
Unit: mm
SWITCHING MODE POWER SUPPLY APPLICATION CONVERTER & CHOPPER APPLICATION
Repetitive Peak Reverse Voltage : VRRM = 400V Average Output Rectified Current : IO = 20A Ultra Fast Reverse−Recovery Time : trr = 35ns (Max) Low Switching Losses and Output Noise.
MAXIMUM RATINGS (Ta = 25°C)
CHARACTERISTIC SYMBOL RATING UNIT
Repetitive Peak Reverse Voltage VRRM 400 V Average Output Rectified Current IO 20 A
100 (50Hz) Peak One Cycle Surge Forward
Current (Sin Wave) IFSM
110 (60Hz)
JEDEC ―
Junction Temperature Tj −40~150 °C JEITA ―
TOSHIBA 12−10D2A
Storage Temperature Range Tstg −40~150 °C
ELECTRICAL CHARACTERISTICS (Ta = 25°C)
CHARACTERISTIC SYMBOL TEST CONDITION MIN TYP. MAX UNIT
Peak Forward Voltage VFM IFM = 10A ― ― 1.8 V Repetitive Peak Reverse Current IRRM VRRM = 400V ― ― 50 µA Reverse Recovery Time trr IF = 2A, di / dt = −50A / µs ― ― 35 ns Forward Recovery Time tfr IF = 1A ― ― 100 ns Thermal Resistance Rth (j−c) DC Total, Junction to Case ― ― 1.6 °C / W
Note: VFM, IRRM, trr, tfr ········ A value of one cell.
POLARITY MARKING
* 1 MARK 20GL2C * 2 A
