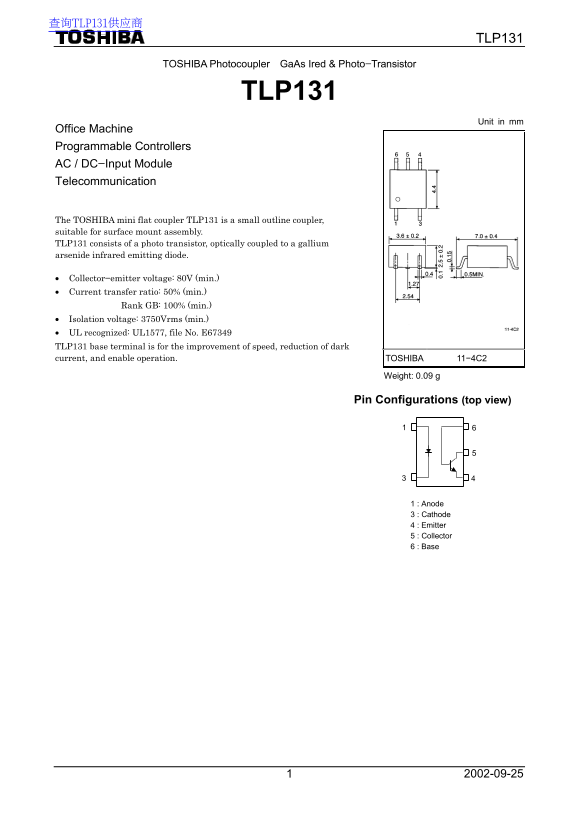

TLP131
TOSHIBA Photocoupler Ga As Ired & Photo−Transistor
TLP131
Unit in mm
Office Machine Programmable Controllers AC / DC−Input Module Telecommunication
The TOSHIBA mini flat coupler TLP131 is a small outline coupler, suitable for surface mount assembly. TLP131 consists of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode.
Collector−emitter voltage: 80V (min.) Current transfer ratio: 50% (min.)
Rank GB: 100% (min.)
Isolation voltage: 3750Vrms (min.) UL recognized: UL1577, file No. E67349 TLP131 base terminal is for the improvement of speed, reduction of dark current, and enable operation. TOSHIBA 11−4C2
Weight: 0.09 g
Pin Configurations (top view)
1 : Anode 3 : Cathode 4 : Emitter 5 : Collector 6 : Base
