This product manual provides comprehensive details for the TLP160J mini flat coupler, a solid state relay featuring an optically coupled photocoupler design (GaAs IR LED and photo-triac). Designed for surface mount assembly in general electronics applications, it ensures electrical signal isolation. The guide covers maximum ratings, individual and coupled electrical characteristics, temperature performance curves, and recommended operating conditions. It is essential reading for engineers and designers integrating reliable, high-performance solid state switching into industrial automation, measuring equipment, or general control systems requiring advanced optical coupling.

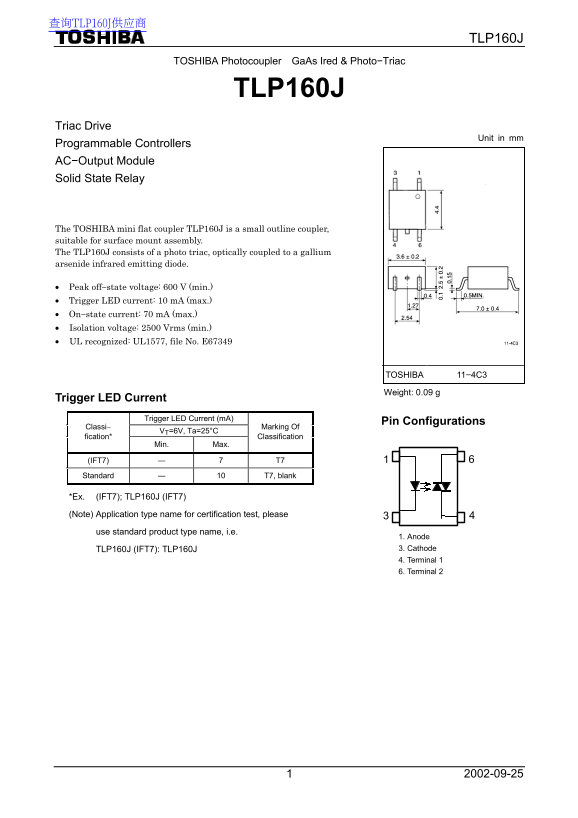

Page 1 Text Content
查询TLP160J供应商
TLP160J
TOSHIBA Photocoupler Ga As Ired & Photo−Triac
TLP160J
Triac Drive
Unit in mm
Programmable Controllers AC−Output Module Solid State Relay
The TOSHIBA mini flat coupler TLP160J is a small outline coupler, suitable for surface mount assembly. The TLP160J consists of a photo triac, optically coupled to a gallium arsenide infrared emitting diode.
Peak off−state voltage: 600 V (min.) Trigger LED current: 10 m A (max.) On−state current: 70 m A (max.) Isolation voltage: 2500 Vrms (min.) UL recognized: UL1577, file No. E67349
TOSHIBA 11−4C3
Weight: 0.09 g
Trigger LED Current
Trigger LED Current (m A)
Pin Configurations
Marking Of
VT=6V, Ta=25°C Classi
fication* Classification
Min. Max.
(IFT7) ― 7 T7 Standard ― 10 T7, blank
*Ex. (IFT7); TLP160J (IFT7)
(Note) Application type name for certification test, please
use standard product type name, i.e.
1. Anode TLP160J (IFT7): TLP160J 3. Cathode 4. Terminal 1 6. Terminal 2
Page Summary Contents For Toshiba TLP160J Data Handbook
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 163.48 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What does the TLP160J consist of?
It consists of a photo triac, which is optically coupled to a gallium arsenide infrared emitting diode.
What is the maximum allowable isolation voltage (BV)?
The specified isolation voltage (BV) is 2500 Vrms (min.).
Are there any restrictions on where I can use this device?
It is designed for general electronics applications, but not for critical safety systems like medical or transportation instruments.
How should I dispose of the product safely?
Disposal must follow appropriate regulations; do not mix it with industrial waste or domestic garbage due to GaAs content.
