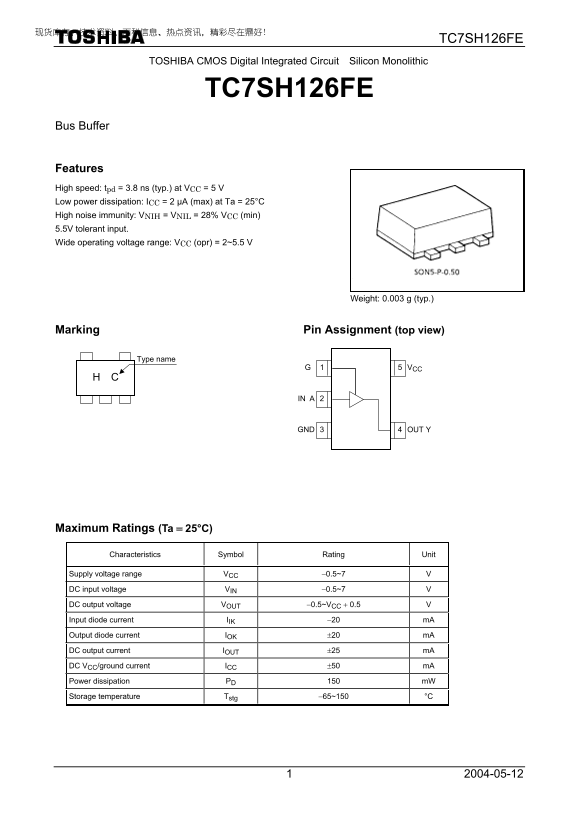

TC7SH126FE
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SH126FE
Bus Buffer
Features High speed: tpd = 3.8 ns (typ.) at VCC = 5 V Low power dissipation: ICC = 2 µA (max) at Ta = 25°C High noise immunity: VNIH = VNIL = 28% VCC (min) 5.5V tolerant input. Wide operating voltage range: VCC (opr) = 2~5.5 V
Weight: 0.003 g (typ.)
Marking Pin Assignment (top view)
Type name
H C IN A
GND OUT Y 3
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Supply voltage range VCC −0.5~7 V
DC input voltage VIN −0.5~7 V
DC output voltage VOUT −0.5~VCC + 0.5 V
Input diode current IIK −20 m A
Output diode current IOK ±20 m A
DC output current IOUT ±25 m A
DC VCC/ground current ICC ±50 m A
Power dissipation PD 150 m W
Storage temperature Tstg −65~150 °C
