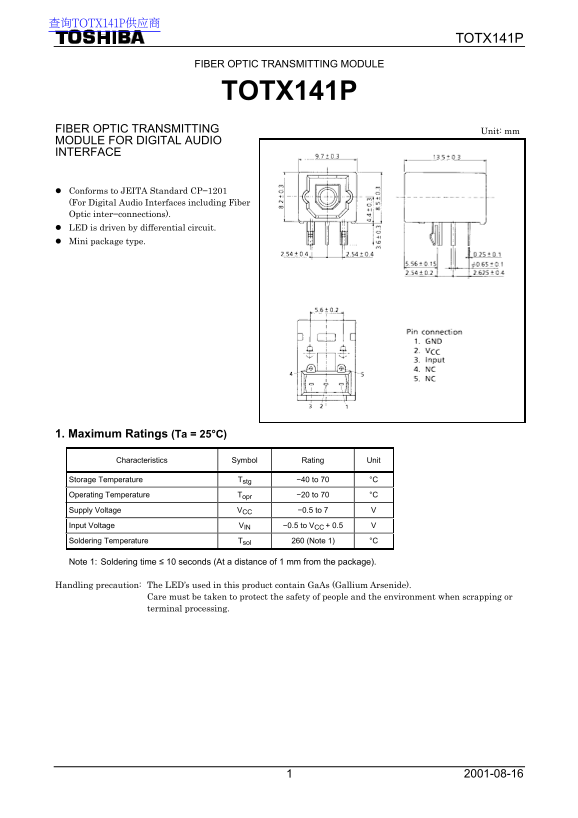

TOTX141P

FIBER OPTIC TRANSMITTING MODULE

TOTX141P

FIBER OPTIC TRANSMITTING Unit: mm MODULE FOR DIGITAL AUDIO INTERFACE

Conforms to JEITA Standard CP−1201 (For Digital Audio Interfaces including Fiber Optic inter−connections). LED is driven by differential circuit. Mini package type.

1. Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit

Storage Temperature Tstg −40 to 70 °C Operating Temperature Topr −20 to 70 °C Supply Voltage VCC −0.5 to 7 V Input Voltage VIN −0.5 to VCC + 0.5 V Soldering Temperature Tsol 260 (Note 1) °C

Note 1: Soldering time ≤ 10 seconds (At a distance of 1 mm from the package).

Handling precaution: The LED’s used in this product contain Ga As (Gallium Arsenide).

Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.

Page Summary Contents For Toshiba TOTX141P Data Handbook

Page 1 查询TOTX141P供应商 TOTX141P FIBER OPTIC TRANSMITTING MODULE TOTX141P FIBER OPTIC TRANSMITTING Unit: mm MODULE FOR DIGITAL AUDIO INTERFACE Conforms to JEITA Standard CP−1201 (For Digital Audio Interfaces in...
Page 2 TOTX141P 2. Recommended Operating Conditions Characteristics Symbol Min Typ. Max Unit Supply Voltage VCC 2.7 3.0 3.6 V High−Level Input Voltage VIH 2.1 ― VCC V Low−Level Input Voltage VIL 0 ― 0.9 V 3....
Page 3 TOTX141P 5. Application Circuit 6. Required Optical Fiber with Fiber Optic Connectors TOCP172−□□B 7. Board layout hole pattern (for reference) Unit: mm Recommended PCB thickness: 1.6 mm
Page 4 TOTX141P 8. Precautions during use (1) Maximum rating The maximum ratings are the limit values which must not be exceeded during operation of device. None of these rating value must not be exceeded. I...
Page 5 TOTX141P (12) Precautions when disposing of devices and packing materials. When disposing devices and packing materials, follow the procedures stipulated by local regulations in order to protect the e...
Page 6 TOTX141P 000707EACRESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or f...
