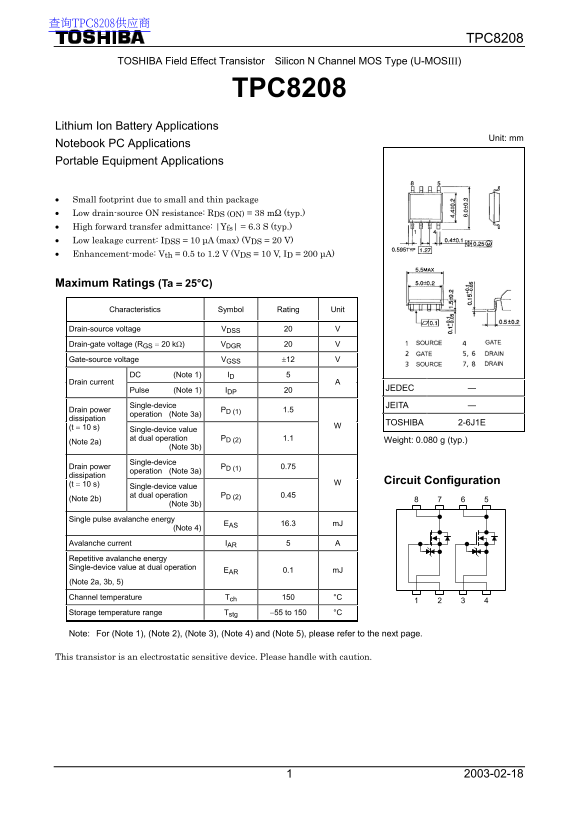

TPC8208
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIII)
TPC8208
Lithium Ion Battery Applications
Unit: mm
Notebook PC Applications Portable Equipment Applications
Small footprint due to small and thin package Low drain-source ON resistance: RDS (ON) = 38 mΩ (typ.) High forward transfer admittance: |Yfs| = 6.3 S (typ.) Low leakage current: IDSS = 10 µA (max) (VDS = 20 V) Enhancement-mode: Vth = 0.5 to 1.2 V (VDS = 10 V, ID = 200 µA)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS 20 V Drain-gate voltage (RGS 20 k) VDGR 20 V Gate-source voltage VGSS 12 V
DC (Note 1) ID 5
Drain current
Pulse (Note 1) IDP 20 JEDEC ―
Single-device JEITA ― operation (Note 3a) PD (1) 1.5 Drain power
dissipation
TOSHIBA 2-6J1E
Single-device value at dual operation PD (2) 1.1 Weight: 0.080 g (typ.)
(Note 2a)
(Note 3b) Single-device operation (Note 3a) PD (1) 0.75 Drain power
dissipation
Circuit Configuration
Single-device value at dual operation PD (2) 0.45
(Note 2b)
(Note 3b) 8 7 6 5
Single pulse avalanche energy (Note 4) EAS 16.3 m J Avalanche current IAR 5 A Repetitive avalanche energy Single-device value at dual operation
EAR 0.1 m J
(Note 2a, 3b, 5) Channel temperature Tch 150 °C
Storage temperature range Tstg 55 to 150 °C
Note: For (Note 1), (Note 2), (Note 3), (Note 4) and (Note 5), please refer to the next page.
This transistor is an electrostatic sensitive device. Please handle with caution.
