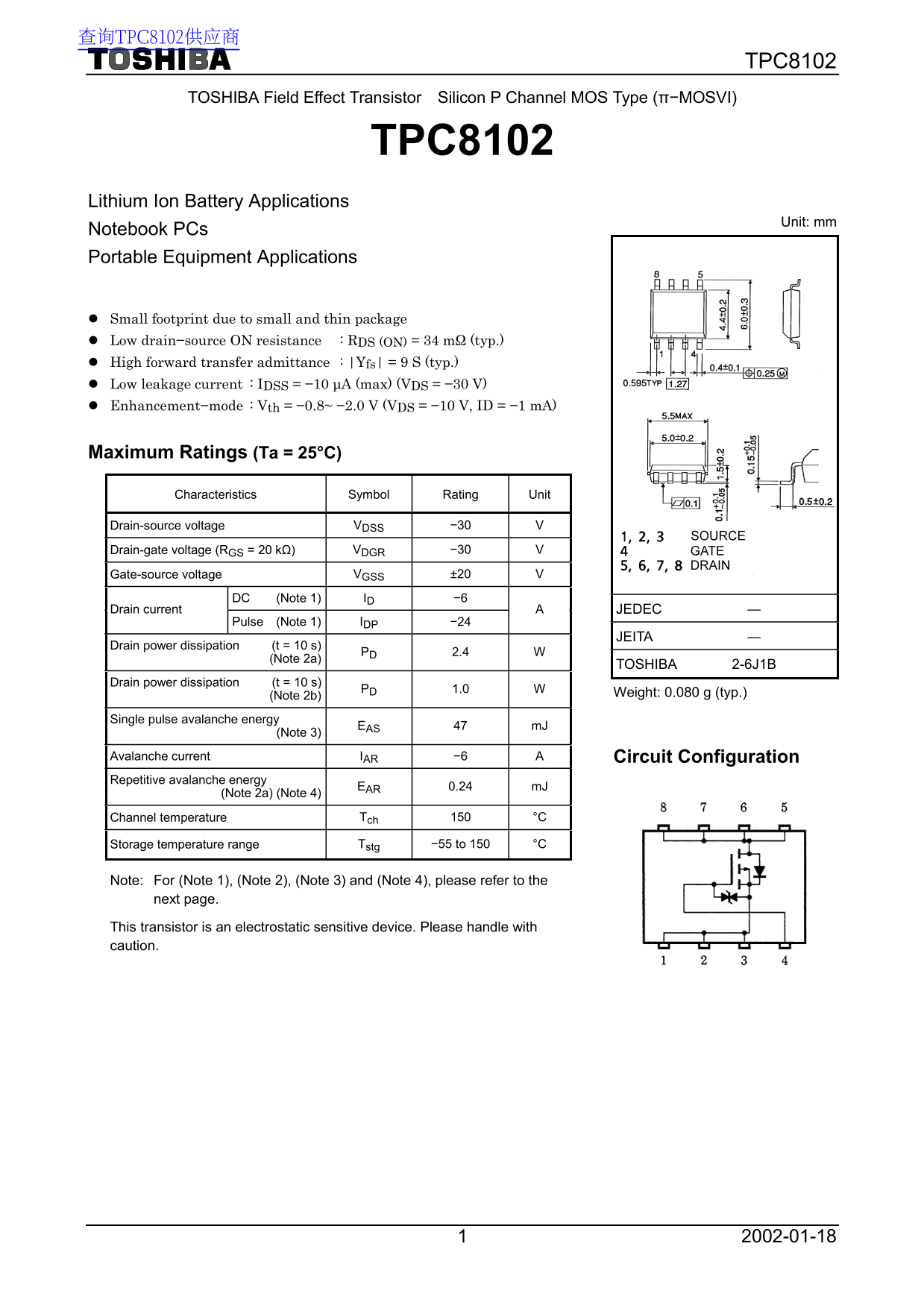

TPC8102
TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (π−MOSVI)
TPC8102
Lithium Ion Battery Applications
Unit: mm
Notebook PCs Portable Equipment Applications
Small footprint due to small and thin package Low drain−source ON resistance : RDS (ON) = 34 mΩ (typ.) High forward transfer admittance : |Yfs| = 9 S (typ.) Low leakage current : IDSS = −10 µA (max) (VDS = −30 V) Enhancement−mode : Vth = −0.8~ −2.0 V (VDS = −10 V, ID = −1 m A)
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS −30 V Drain-gate voltage (RGS = 20 kΩ) VDGR −30 V Gate-source voltage VGSS ±20 V
DC (Note 1) ID −6
Drain current JEDEC ―
Pulse (Note 1) IDP −24
JEITA ―
Drain power dissipation (t = 10 s) (Note 2a) PD 2.4 W
TOSHIBA 2-6J1B
Drain power dissipation (t = 10 s)
(Note 2b) PD 1.0 W Weight: 0.080 g (typ.)
Single pulse avalanche energy (Note 3) EAS 47 m J Avalanche current IAR −6 A Circuit Configuration Repetitive avalanche energy (Note 2a) (Note 4) EAR 0.24 m J Channel temperature Tch 150 °C
Storage temperature range Tstg −55 to 150 °C
Note: For (Note 1), (Note 2), (Note 3) and (Note 4), please refer to the next page.
This transistor is an electrostatic sensitive device. Please handle with caution.
