Toshiba TPC8003 Data Handbook
Summary
A high-performance N-Channel Field Effect Transistor engineered for demanding portable applications, including Notebook PCs and Lithium Ion Battery systems. This detailed technical manual provides comprehensive specifications, covering electrical ratings, thermal characteristics, and handling guidelines essential for system designers. It specifies the device's low drain-source ON resistance and compact footprint, making it ideal for integrating into general consumer electronics requiring efficiency and reliability.

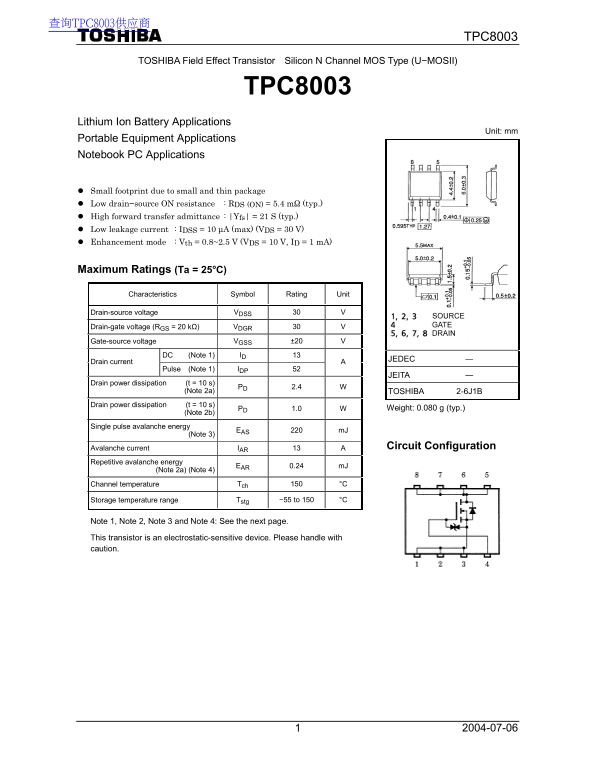

Page 1 Text Content
查询TPC8003供应商
TPC8003
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U−MOSII)
TPC8003
Lithium Ion Battery Applications
Unit: mm
Portable Equipment Applications Notebook PC Applications
Small footprint due to small and thin package Low drain−source ON resistance : RDS (ON) = 5.4 mΩ (typ.) High forward transfer admittance : |Yfs| = 21 S (typ.) Low leakage current : IDSS = 10 µA (max) (VDS = 30 V) Enhancement mode : Vth = 0.8~2.5 V (VDS = 10 V, ID = 1 m A)
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS 30 V
Drain-gate voltage (RGS = 20 kΩ) VDGR 30 V
Gate-source voltage VGSS ±20 V
DC (Note 1) ID 13
JEDEC ―
Drain current
Pulse (Note 1) IDP 52
JEITA ―
Drain power dissipation (t = 10 s) (Note 2a) PD 2.4 W TOSHIBA 2-6J1B Drain power dissipation (t = 10 s)
Weight: 0.080 g (typ.)
(Note 2b) PD 1.0 W
Single pulse avalanche energy (Note 3) EAS 220 m J
Avalanche current IAR 13 A Circuit Configuration
Repetitive avalanche energy (Note 2a) (Note 4) EAR 0.24 m J
Channel temperature Tch 150 °C
Storage temperature range Tstg −55 to 150 °C
Note 1, Note 2, Note 3 and Note 4: See the next page.
This transistor is an electrostatic-sensitive device. Please handle with caution.
Page Summary Contents For Toshiba TPC8003 Data Handbook
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 7 |
| File Size | 492.22 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this device require special handling?
Yes, it is an electrostatic-sensitive device and must be handled with caution.
What are the temperature limits for operation?
The channel temperature must not exceed 150°C during use.
In what types of equipment is this transistor intended for use?
It is designed for general electronics applications, such as computers, office equipment, and industrial robotics.
Are there any disallowed uses for the TPC8003?
No, it is not warranted for 'Unintended Usage,' which includes medical or aerospace instruments.
