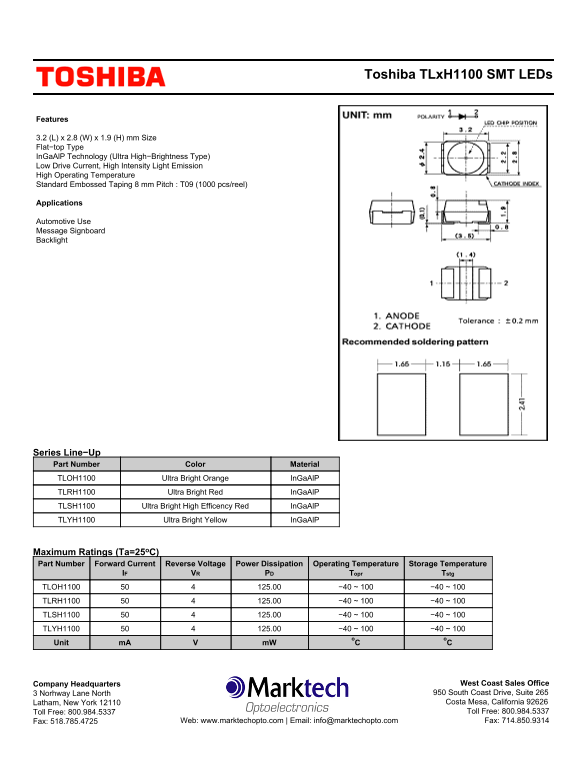

Toshiba TLx H1100 SMT LEDs
Features
3.2 (L) x 2.8 (W) x 1.9 (H) mm Size Flat−top Type In Ga Al P Technology (Ultra High−Brightness Type) Low Drive Current, High Intensity Light Emission High Operating Temperature Standard Embossed Taping 8 mm Pitch : T09 (1000 pcs/reel)
Applications
Automotive Use Message Signboard Backlight
Series Line−Up Part Number Color Material TLOH1100 Ultra Bright Orange In Ga Al P TLRH1100 Ultra Bright Red In Ga Al P TLSH1100 Ultra Bright High Efficency Red In Ga Al P TLYH1100 Ultra Bright Yellow In Ga Al P
Maximum Ratings (Ta=25o C) Part Number Forward Current Reverse Voltage Power Dissipation Operating Temperature Storage Temperature
IF VR PD Topr Tstg
TLOH1100 125.00 −40 ~ 100 −40 ~ 100 TLRH1100 125.00 −40 ~ 100 −40 ~ 100 TLSH1100 125.00 −40 ~ 100 −40 ~ 100 TLYH1100 125.00 −40 ~ 100 −40 ~ 100 Unit m A m W
Company Headquarters West Coast Sales Office 3 Norhway Lane North 950 South Coast Drive, Suite 265 Latham, New York 12110 Costa Mesa, California 92626 Toll Free: 800.984.5337 Toll Free: 800.984.5337
Fax: 518.785.4725 Web: www.marktechopto.com | Email: [email protected] Fax: 714.850.9314
