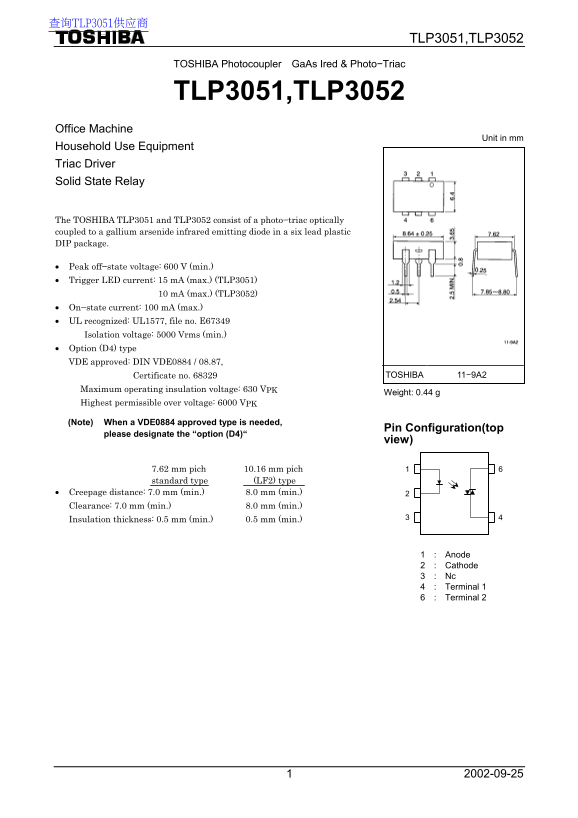

Page 1 Text Content
查询TLP3051供应商
TLP3051,TLP3052
TOSHIBA Photocoupler Ga As Ired & Photo−Triac
TLP3051,TLP3052
Office Machine
Unit in mm
Household Use Equipment Triac Driver Solid State Relay
The TOSHIBA TLP3051 and TLP3052 consist of a photo−triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Peak off−state voltage: 600 V (min.) Trigger LED current: 15 m A (max.) (TLP3051)
10 m A (max.) (TLP3052)
On−state current: 100 m A (max.) UL recognized: UL1577, file no. E67349 Isolation voltage: 5000 Vrms (min.) Option (D4) type VDE approved: DIN VDE0884 / 08.87,
Certificate no. 68329 TOSHIBA 11−9A2
Maximum operating insulation voltage: 630 VPK
Weight: 0.44 g
Highest permissible over voltage: 6000 VPK
(Note) When a VDE0884 approved type is needed,
Pin Configuration(top
please designate the “option (D4)“
view)
7.62 mm pich 10.16 mm pich standard type (LF2) type
Creepage distance: 7.0 mm (min.) 8.0 mm (min.) Clearance: 7.0 mm (min.) 8.0 mm (min.) Insulation thickness: 0.5 mm (min.) 0.5 mm (min.)
1 : Anode 2 : Cathode 3 : Nc 4 : Terminal 1 6 : Terminal 2
