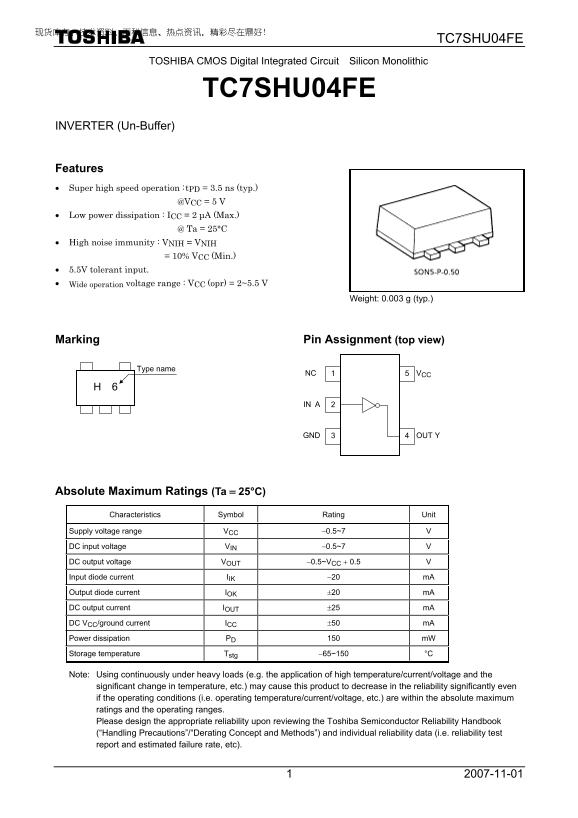

Page 1 Text Content
TC7SHU04FE
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SHU04FE
INVERTER (Un-Buffer)
Features • Super high speed operation : t PD = 3.5 ns (typ.) @VCC = 5 V • Low power dissipation : ICC = 2 μA (Max.) @ Ta = 25°C • High noise immunity : VNIH = VNIH = 10% VCC (Min.) • 5.5V tolerant input. • Wide operation voltage range : VCC (opr) = 2~5.5 V
Weight: 0.003 g (typ.)
Marking Pin Assignment (top view)
Type name
NC VCC
GND OUT Y
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Supply voltage range VCC −0.5~7 V
DC input voltage VIN −0.5~7 V
DC output voltage VOUT −0.5~VCC + 0.5 V
Input diode current IIK −20 m A
Output diode current IOK ±20 m A
DC output current IOUT ±25 m A
DC VCC/ground current ICC ±50 m A
Power dissipation PD 150 m W
Storage temperature Tstg −65~150 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
