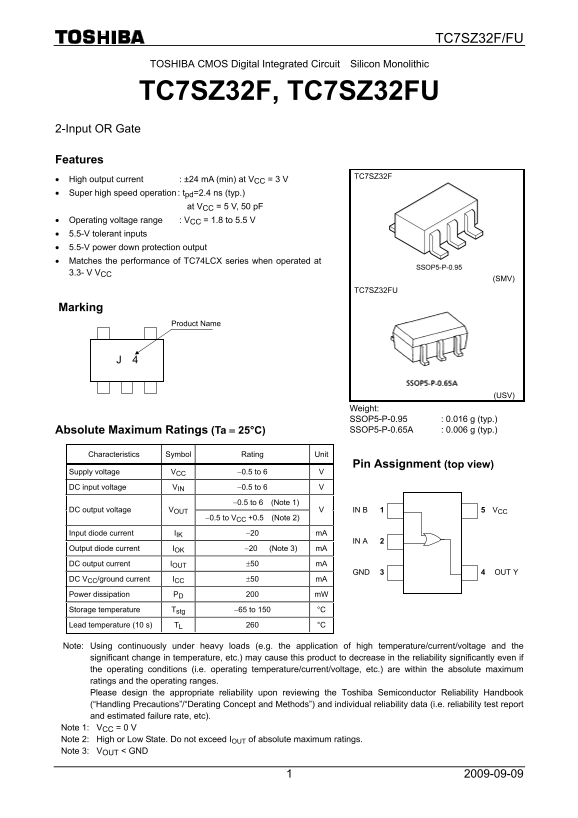

TC7SZ32F/FU
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SZ32F, TC7SZ32FU 2-Input OR Gate
Features
TC7SZ32F
• High output current : ±24 m A (min) at VCC = 3 V • Super high speed operation : tpd=2.4 ns (typ.)
at VCC = 5 V, 50 p F
• Operating voltage range : VCC = 1.8 to 5.5 V • 5.5-V tolerant inputs • 5.5-V power down protection output • Matches the performance of TC74LCX series when operated at 3.3- V VCC
(SMV)
TC7SZ32FU
Marking
Product Name
(USV)
Weight: SSOP5-P-0.95 : 0.016 g (typ.) Absolute Maximum Ratings (Ta = 25°C) SSOP5-P-0.65A : 0.006 g (typ.)
Characteristics Symbol Rating Unit
Pin Assignment (top view)
Supply voltage VCC −0.5 to 6 V
DC input voltage VIN −0.5 to 6 V
−0.5 to 6 (Note 1)
DC output voltage VOUT IN B 1 5 VCC
−0.5 to VCC +0.5 (Note 2)
Input diode current IIK −20 m A
IN A 2
Output diode current IOK −20 (Note 3) m A
DC output current IOUT ±50 m A
GND 3 4 OUT Y
DC VCC/ground current ICC ±50 m A
Power dissipation PD 200 m W
Storage temperature Tstg −65 to 150 °C
Lead temperature (10 s) TL 260 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: VCC = 0 V Note 2: High or Low State. Do not exceed IOUT of absolute maximum ratings. Note 3: VOUT < GND
