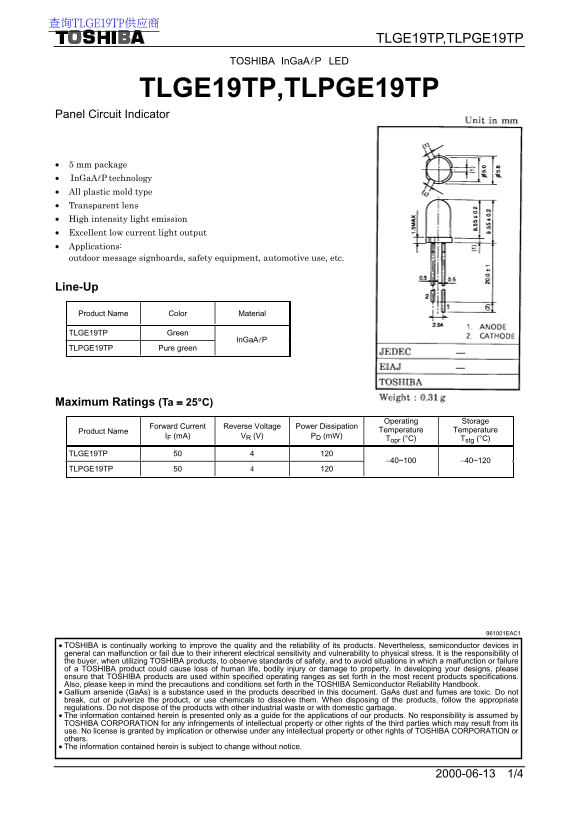

Toshiba TLGE19TP, TLPGE19TP Data Handbook

查询TLGE19TP供应商

TLGE19TP,TLPGE19TP

TOSHIBA PIn Ga Al LED

TLGE19TP,TLPGE19TP Panel Circuit Indicator

• 5 mm package • PIn Ga Al technology • All plastic mold type • Transparent lens • High intensity light emission • Excellent low current light output • Applications: outdoor message signboards, safety equipment, automotive use, etc.

Line-Up

Product Name Color Material

TLGE19TP Green

PIn Ga Al

TLPGE19TP Pure green

Maximum Ratings (Ta = 25°C)

Operating Storage

Forward Current Reverse Voltage Power Dissipation

Product Name Temperature Temperature

IF (m A) VR (V) PD (m W)

Topr (°C) Tstg (°C)

TLGE19TP 50 4 120

TLPGE19TP 50 4 120

961001EAC1

• TOSHIBA is continually working to improve the quality and the reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to observe standards of safety, and to avoid situations in which a malfunction or failure of a TOSHIBA product could cause loss of human life, bodily injury or damage to property. In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the most recent products specifications. Also, please keep in mind the precautions and conditions set forth in the TOSHIBA Semiconductor Reliability Handbook. • Gallium arsenide (Ga As) is a substance used in the products described in this document. Ga As dust and fumes are toxic. Do not break, cut or pulverize the product, or use chemicals to dissolve them. When disposing of the products, follow the appropriate regulations. Do not dispose of the products with other industrial waste or with domestic garbage. • The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or others. • The information contained herein is subject to change without notice.
