Toshiba P1550LA, P1750LA, P1950LA User's Manual
Summary
Discover optimal performance with this LCD Color Monitor. This manual provides comprehensive operating guidelines, crucial safety instructions, and detailed setup information tailored for new owners. It ensures you can safely understand proper usage, maintenance procedures, and FCC compliance details, allowing you to maximize your viewing experience while keeping your equipment running reliably for years to come.
Page 1 Text Content

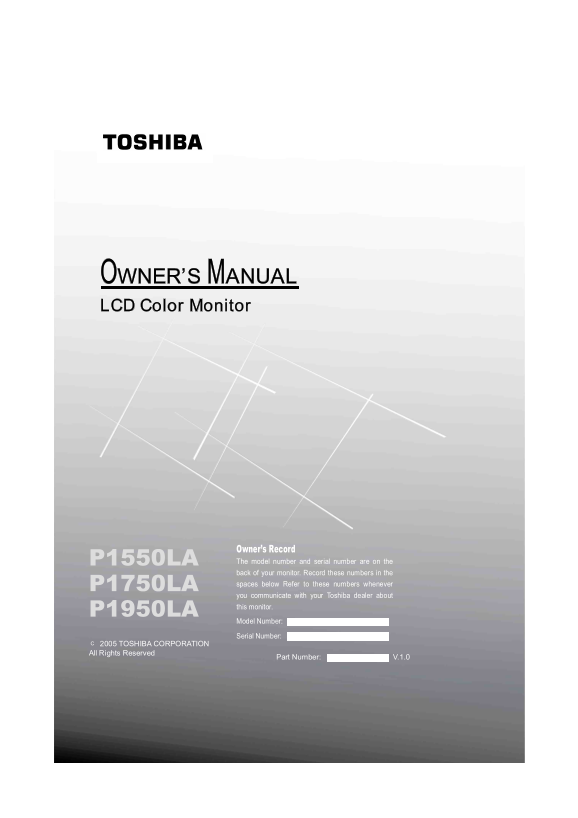

OWNER’S MANUAL LCD Color Monitor
Owner’s Record P1550LA The model number and serial number are on the back of your monitor. Record these numbers in the P1750LA spaces below Refer to these numbers whenever you communicate with your Toshiba dealer about this monitor.
P1950LA
Model Number:
Serial Number:
○C 2005 TOSHIBA CORPORATION All Rights Reserved
Part Number: V.1.0
Page Summary Contents For Toshiba P1550LA, P1750LA, P1950LA User's Manual
Page 1
OWNER’S MANUAL LCD Color Monitor Owner’s Record P1550LA The model number and serial number are on the back of your monitor. Record these numbers in the P1750LA spaces below Refer to these numbers when...
Page 2
Important Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning symbol in the triangle tells you that the voltage inside th...
Page 3
Important Information FCC compliance information in USA FCC Declaration of Conformity Compliance Statement (Part 15): The Toshiba LCD Color Monitor complies with Part 15 of the FCC rules. Operation is...
Page 4
Important Information 11. POWER-CORD PROTECTION Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular atten...
Page 5
Table of Contents Important Information…………………………………………………………………… 2 Table of Contents……………………………………………………………………….. 5 Exploring your New Monitor……………………………………………………………. 6 Front Panel…………………………………………………...
Page 6
Exploring your New Monitor You can operate your Monitor by using the buttons on the front panel. The side panels provide the inputs to connect other equipment to your Monitor. Front Panel P1550LA P175...
Page 7
Selecting a Location for the Monitor Place the Monitor on the floor or on a sturdy platform in a location where light does not directly hit the screen. Place the Monitor far enough from the walls to a...
Page 8
Connecting a DVR (Digital Video Recorder) This connection allows you to watch DVR. Audio 2Audio 2 IN OUT Audio 1 Audio 1 IN OUT S-Video IN Video 2 Aud io Out DVR OUT Video 2 IN Video 1 OUT Video 1 IN ...
Page 9
Connecting a PC (Personal Computer) Before you connect this PC to your monitor, change the adjustment of your PC’s Resolution and Refresh rate. See “Monitor Display modes”. Connect one end of a (male ...
Page 10
Rack Mount Mounting the monitor on the rack Rack Mount Note: When adjusting to a rack, you will need to use an optional rack mount to the back side of the LCD monitor. Optional rack mount will be sold...
Page 11
Setting up your Monitor 1. Turning on the monitor Press the POWER. : The power indicator lamp (green) will light and the image will be displayed. Press the POWER again. : The power indicator lamp (red...
Page 12
General Setup TOSHIBA Language English Back Light 100 Power on Option None Power Latching ON Key Lock OFF Display OFF Volume 50 Exit OSD Language: Allow user to select the Languages in English, French...
Page 13
Video Setup TOSHIBA Brightness 100 Contrast 100 Color 100 Hue 0 Sharpness 100 Color Temp 9300 Video System NTSC Over Scan LARGE Default Exit OSD Brightness: Adjust the overall picture shade and bright...
Page 14
PC-In Setup TOSHIBA Auto OFF Brightness 100 Contrast 100 H – Posi tion 100 V – Posi tion 100 Clock 100 Phase 100 Color Temp 9300 White Balance Default Exit OSD Auto: Auto-optimize displaying picture u...
Page 15
Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solution. Symptom Solution Monitor will not turn on ● Make sure the p...
Page 16
LCD Color Monitor Specifications Model Number P1550LA P1750LA P1950LA Panel Size 15.0” 17.0” 19.0” Aspect Ratio 4:3 4:3 4:3 Resolution / Scan Brightness 250cd/m2 (*1) 250cd/m2 (*1) 250cd/m2 ( 1) Viewi...
Page 17
LCD Color Monitor Dimensions
Page 18
LIMITED WARRANTY The Imaging Systems Divis ion of Toshiba America Information Systems, Inc.(“ ISD) makes the following lim ited warranties with regard to this LCD Monitor(“Product ). These lim ited wa...
