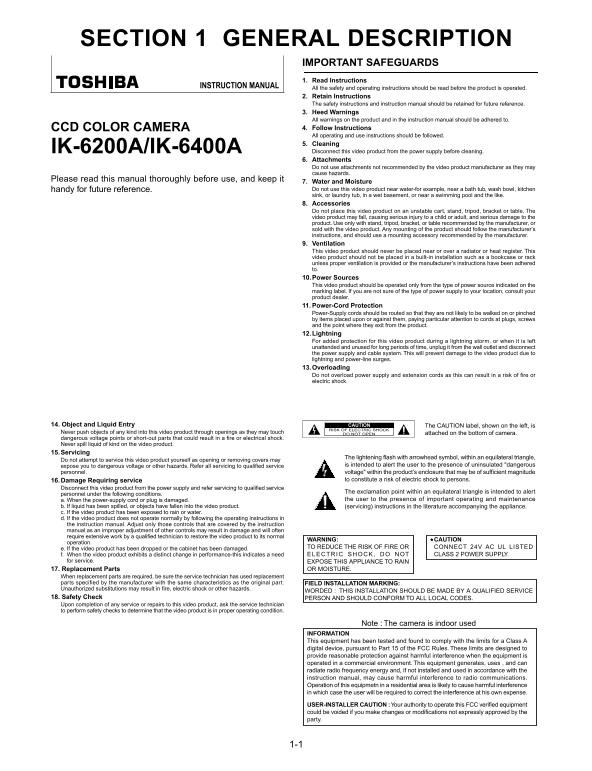

Toshiba IK-6200A IK-6400A User's Manual

SECTION 1 GENERAL DESCRIPTION

IMPORTANT SAFEGUARDS 1. Read Instructions

INSTRUCTION MANUAL All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions The safety instructions and instruction manual should be retained for future reference. 3. Heed Warnings All warnings on the product and in the instruction manual should be adhered to. CCD COLOR CAMERA 4. Follow Instructions All operating and use instructions should be followed. 5. Cleaning IK-6200A/IK-6400A Disconnect this video product from the power supply before cleaning. 6. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

Please read this manual thoroughly before use, and keep it

7. Water and Moisture handy for future reference. Do not use this video product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like. 8. Accessories Do not place this video product on an unstable cart, stand, tripod, bracket or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. 9. Ventilation This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 10.Power Sources This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your location, consult your product dealer. 11. Power-Cord Protection Power-Supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, screws and the point where they exit from the product. 12.Lightning For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the power supply and cable system. This will prevent damage to the video product due to lightning and power-line surges. 13.Overloading Do not overload power supply and extension cords as this can result in a risk of fire or electric shock.

14. Object and Liquid Entry The CAUTION label, shown on the left, is Never push objects of any kind into this video product through openings as they may touch attached on the bottom of camera. dangerous voltage points or short-out parts that could result in a fire or electrical shock. Never spill liquid of kind on the video product. 15.Servicing

The lightening flash with arrowhead symbol, within an equilateral triangle,

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service is intended to alert the user to the presence of uninsulated "dangerous

personnel. voltage" within the product’s enclosure that may be of sufficient magnitude

16.Damage Requiring service to constitute a risk of electric shock to persons.

Disconnect this video product from the power supply and refer servicing to qualified service

The exclamation point within an equilateral triangle is intended to alert

personnel under the following conditions.

a. When the power-supply cord or plug is damaged. the user to the presence of important operating and maintenance

b. If liquid has been spilled, or objects have fallen into the video product. (servicing) instructions in the literature accompanying the appliance. c. If the video product has been exposed to rain or water. d. If the video product does not operate normally by following the operating instructions in the instruction manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal

WARNING: CAUTION

operation.

e. If the video product has been dropped or the cabinet has been damaged. TO REDUCE THE RISK OF FIRE OR CONNECT 24V AC UL LISTED f. When the video product exhibits a distinct change in performance-this indicates a need ELECTRIC SHOCK, DO NOT CLASS 2 POWER SUPPLY.

for service. EXPOSE THIS APPLIANCE TO RAIN

17. Replacement Parts OR MOISTURE.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer with the same characteristics as the original part. FIELD INSTALLATION MARKING: Unauthorized substitutions may result in fire, electric shock or other hazards.

WORDED : THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE

18. Safety Check PERSON AND SHOULD CONFORM TO ALL LOCAL CODES. Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

Note : The camera is indoor used

INFORMATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses , and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipmetn in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

USER-INSTALLER CAUTION : Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party.
