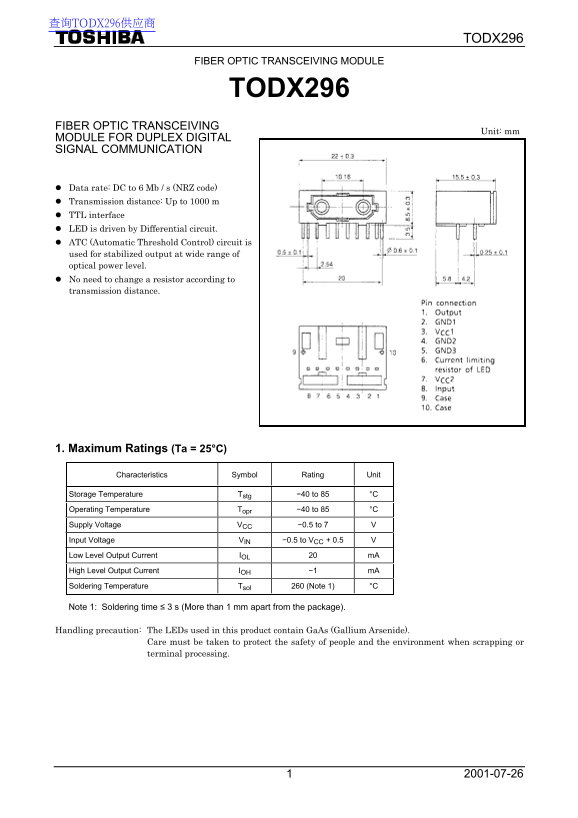

TODX296
FIBER OPTIC TRANSCEIVING MODULE
TODX296
FIBER OPTIC TRANSCEIVING
Unit: mm
MODULE FOR DUPLEX DIGITAL SIGNAL COMMUNICATION
Data rate: DC to 6 Mb / s (NRZ code) Transmission distance: Up to 1000 m TTL interface LED is driven by Differential circuit. ATC (Automatic Threshold Control) circuit is used for stabilized output at wide range of optical power level. No need to change a resistor according to transmission distance.
1. Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Storage Temperature Tstg −40 to 85 °C Operating Temperature Topr −40 to 85 °C Supply Voltage VCC −0.5 to 7 V Input Voltage VIN −0.5 to VCC + 0.5 V Low Level Output Current IOL 20 m A High Level Output Current IOH −1 m A Soldering Temperature Tsol 260 (Note 1) °C
Note 1: Soldering time ≤ 3 s (More than 1 mm apart from the package).
Handling precaution: The LEDs used in this product contain Ga As (Gallium Arsenide).
Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.
