Toshiba Fiber Optic Transceiving Module TODX294 Data Sheet
Summary
This transceiving module is engineered for reliable duplex digital signal communication, supporting data rates up to 10 Mb/s over transmission distances of 1000 meters. Designed for integration into general electronics systems—including industrial robotics and computing equipment—the accompanying technical manual serves as a comprehensive guide for engineers. It details critical operational parameters, ranging from electrical thresholds and optical performance curves to required application circuit layouts and vital handling precautions, ensuring safe and accurate implementation across various professional settings.

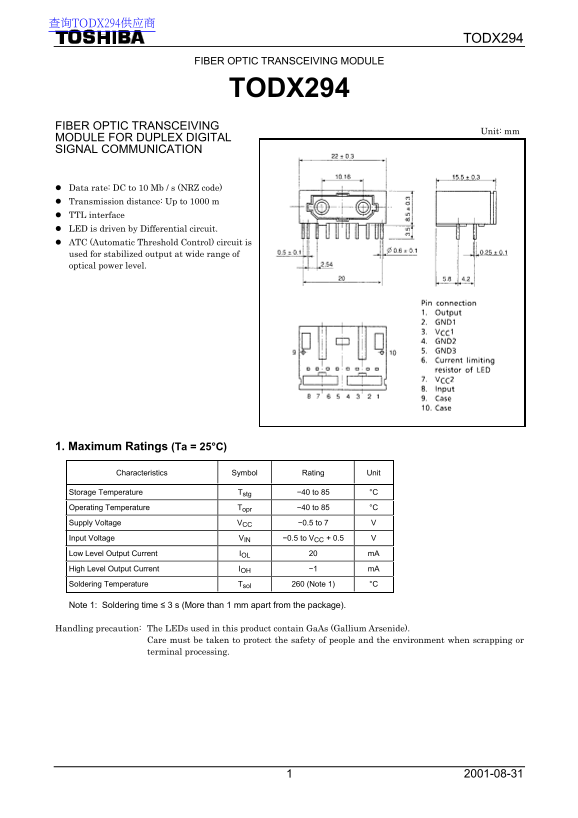

Page 1 Text Content
查询TODX294供应商
TODX294
FIBER OPTIC TRANSCEIVING MODULE
TODX294
FIBER OPTIC TRANSCEIVING
Unit: mm
MODULE FOR DUPLEX DIGITAL SIGNAL COMMUNICATION
Data rate: DC to 10 Mb / s (NRZ code) Transmission distance: Up to 1000 m TTL interface LED is driven by Differential circuit. ATC (Automatic Threshold Control) circuit is used for stabilized output at wide range of optical power level.
1. Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Storage Temperature Tstg −40 to 85 °C Operating Temperature Topr −40 to 85 °C Supply Voltage VCC −0.5 to 7 V Input Voltage VIN −0.5 to VCC + 0.5 V Low Level Output Current IOL 20 m A High Level Output Current IOH −1 m A Soldering Temperature Tsol 260 (Note 1) °C
Note 1: Soldering time ≤ 3 s (More than 1 mm apart from the package).
Handling precaution: The LEDs used in this product contain Ga As (Gallium Arsenide).
Care must be taken to protect the safety of people and the environment when scrapping or terminal processing.
