Texas Instruments UC28023 UC28025 Data Sheet

Summary

High-performance PWM controllers essential for designing robust switched-mode power supplies and DC/DC converters. These ICs offer multi-functional control, including Peak/Average Current Mode operation, advanced UVLO protection, and soft-start capabilities, allowing reliable performance up to 1 MHz in both single and dual output topologies. The documentation provides key specifications, operational guidelines, and detailed application knowledge needed by electrical engineers building cost-effective, high-frequency power systems for critical applications.

📄 Preview PAGE OF 18

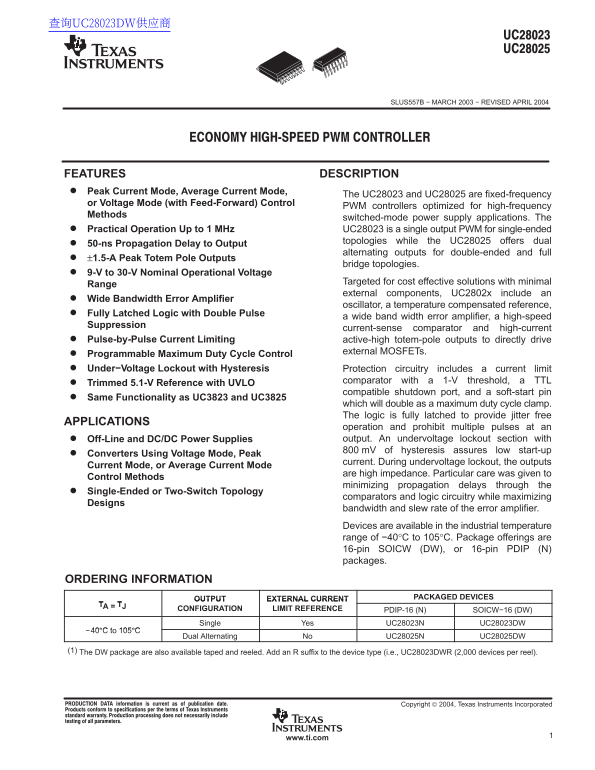

Page 1 Text Content

查询UC28023DW供应商

SLUS557B − MARCH 2003 − REVISED APRIL 2004

FEATURES DESCRIPTION Peak Current Mode, Average Current Mode,

The UC28023 and UC28025 are fixed-frequency

or Voltage Mode (with Feed-Forward) Control

PWM controllers optimized for high-frequency

Methods

switched-mode power supply applications. The

Practical Operation Up to 1 MHz UC28023 is a single output PWM for single-ended

topologies while the UC28025 offers dual

50-ns Propagation Delay to Output

alternating outputs for double-ended and full

±1.5-A Peak Totem Pole Outputs

bridge topologies.

9-V to 30-V Nominal Operational Voltage

Targeted for cost effective solutions with minimal

Range

external components, UC2802x include an

Wide Bandwidth Error Amplifier

oscillator, a temperature compensated reference,

Fully Latched Logic with Double Pulse

a wide band width error amplifier, a high-speed

Suppression

current-sense comparator and high-current

Pulse-by-Pulse Current Limiting active-high totem-pole outputs to directly drive

external MOSFETs.

Programmable Maximum Duty Cycle Control Under−Voltage Lockout with Hysteresis Protection circuitry includes a current limit

comparator with a 1-V threshold, a TTL

Trimmed 5.1-V Reference with UVLO

compatible shutdown port, and a soft-start pin

Same Functionality as UC3823 and UC3825

which will double as a maximum duty cycle clamp. The logic is fully latched to provide jitter free

APPLICATIONS

operation and prohibit multiple pulses at an Off-Line and DC/DC Power Supplies output. An undervoltage lockout section with 800 m V of hysteresis assures low start-up

Converters Using Voltage Mode, Peak

current. During undervoltage lockout, the outputs

Current Mode, or Average Current Mode

are high impedance. Particular care was given to

Control Methods

minimizing propagation delays through the

Single-Ended or Two-Switch Topology

comparators and logic circuitry while maximizing

Designs

bandwidth and slew rate of the error amplifier. Devices are available in the industrial temperature range of −40°C to 105°C. Package offerings are 16-pin SOICW (DW), or 16-pin PDIP (N) packages.

ORDERING INFORMATION

OUTPUT EXTERNAL CURRENT PACKAGED DEVICES

TA = TJ

CONFIGURATION LIMIT REFERENCE PDIP-16 (N) SOICW−16 (DW) Single Yes UC28023N UC28023DW

−40°C to 105°C

Dual Alternating No UC28025N UC28025DW

(1) The DW package are also available taped and reeled. Add an R suffix to the device type (i.e., UC28023DWR (2,000 devices per reel).

! " #$%! "  &$'(#! )!%* Copyright  2004, Texas Instruments Incorporated )$#!" # ! "&%##!" &% !+% !%"  %," "!$%!" "!)) -!.* )$#! &#%""/ )%" ! %#%""(. #($)% !%"!/  (( &%!%"*

1www.ti.com

Page Summary Contents For Texas Instruments UC28023 UC28025 Data Sheet

Page 1 查询UC28023DW供应商 SLUS557B − MARCH 2003 − REVISED APRIL 2004 FEATURES DESCRIPTION Peak Current Mode, Average Current Mode, The UC28023 and UC28025 are fixed-frequency or Voltage Mode (with Feed-Forward) ...
Page 2 SLUS557B − MARCH 2003 − REVISED APRIL 2004 These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling t...
Page 3 SLUS557B − MARCH 2003 − REVISED APRIL 2004 ELECTRICAL CHARACTERISTICS TA = −40°C to 105°C , TJ = TA, RT = 3.65 kΩ, CT = 1 n F, VCC = 15 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX...
Page 4 SLUS557B − MARCH 2003 − REVISED APRIL 2004 ELECTRICAL CHARACTERISTICS TA = −40°C to 105°C , TJ = TA, RT = 3.65 kΩ, CT = 1 n F, VCC = 15 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX...
Page 5 SLUS557B − MARCH 2003 − REVISED APRIL 2004 FUNCTIONAL BLOCK DIAGRAM CLOCK UC28025 Toggle F/F OSCILLATOR CT OUTA 1.25 V Latch 3EAOUT Wide Bandwidth Error Amplifier UC28023 Inhibit VC SS PGND 1 V (UC280...
Page 6 SLUS557B − MARCH 2003 − REVISED APRIL 2004 TERMINAL FUNCTIONS TERMINAL NAME I/O DESCRIPTION UC28023 UC28025 CLOCK Output of the internal oscillator Timing capacitor connection pin for oscillator frequ...
Page 7 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION VOUT 5 V 42 V to 56 V 1 A to 10 A VCC VC VREF OUTB NI OUTA 4.3 kΩ UC28025 INV ILIM/SD EAOUT RAMP CLOCK CT 120 p F RT PGND GND SS UDG−...
Page 8 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION PCB LAYOUT CONSIDERATIONS High speed circuits demand careful attention to layout and component placement. To assure proper performanc...
Page 9 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION GAIN AND PHASE VOLTAGE vs vs FREQUENCY TIME VOUTVIN PHASE 0.2 0.4 0.6 0.8 1.0 f OSC − Frequency − Hz tdelay − Delay Time− µs /A tp Vo...
Page 10 SLUS557B − MARCH 2003 − REVISED APRIL 2004 im in es is ta ce APPLICATION INFORMATION OSCILLATOR DEAD TIME vs TIMING CAPACITANCE UC2802x RT 3 kΩ ≤ RT ≤ 100 kΩ IC = IR CT 2.20 CLOCK 0.22 ea im ea im µs ...
Page 11 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION SYNCHRONIZATION Figure 11 shows a generalized synchronization. Figure 12 shows a synchronozed operation of two units in close proximi...
Page 12 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION FEEDFORWARD CIRCUIT UC2802x CLOCKCFF UDG−03050 Figure 13. Feedforward Technique for Off-Line Voltage-Mode Applications CONSTANT VOLT-...
Page 13 SLUS557B − MARCH 2003 − REVISED APRIL 2004 The circuit for the UC28025 shown in Figure 15 describes achievement a constant volt-second product clamp over varying input voltages. The ramp generator com...
Page 14 tp Vo lt ag SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION OUTPUTS UC28023 has one output and UC28025 has dual alternating outputs. SATURATION VOLTAGE UC2802x OUTPUT CURRENT Source...
Page 15 SLUS557B − MARCH 2003 − REVISED APRIL 2004 APPLICATION INFORMATION Open Loop Laboratory Test Fixture The following test fixture is useful for exercising many of the UC28025’s functions and measuring t...
Page 18 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and servic...

Manual Details

Brand Texas Instruments
Pages 18
File Size 390.13 KB
Published June 06, 2026
45 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the nominal operating voltage range?

The UC2802x controllers are designed to operate within a 9-V to 30-V nominal voltage range.

Does the UC28025 support dual outputs for bridge topologies?

Yes, the UC28025 offers alternating outputs for double-ended and full ±1.5-A Peak Totem Pole Outputs bridge topologies.

What precautions should be taken when storing the components?

The leads should be shorted together or the device placed in conductive foam during storage to prevent electrostatic damage to the MOS gates.

How high of a frequency can these controllers operate at?

The UC28023 is rated for practical operation up to 1 MHz.
