TPS755xx 5A low-dropout voltage regulators in 1.5V/1.8V/2.5V/3.3V fixed and adjustable versions. 250mV dropout at 5A, 125uA quiescent current, fast transient response. Open-drain power-good output, thermal shutdown, 3% tolerance. TO-220 and TO-263 packages. For power engineers needing high-current LDO with monitoring.
Page 1 Text Content

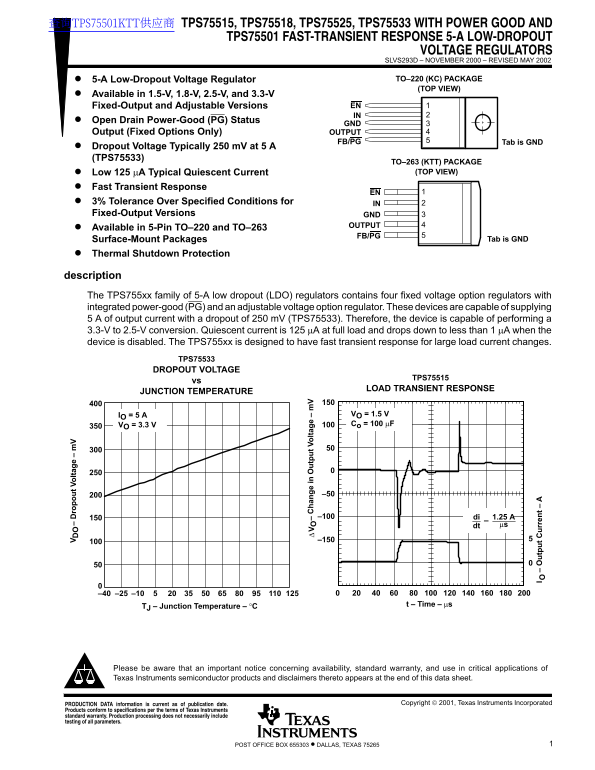

查询TPS75501KTT供应商 TPS75515, TPS75518, TPS75525, TPS75533 WITH POWER GOOD AND
TPS75501 FAST-TRANSIENT RESPONSE 5-A LOW-DROPOUT
VOLTAGE REGULATORS SLVS293D – NOVEMBER 2000 – REVISED MAY 2002
ro lt ag
5-A Low-Dropout Voltage Regulator TO–220 (KC) PACKAGE (TOP VIEW)
Available in 1.5-V, 1.8-V, 2.5-V, and 3.3-V
Fixed-Output and Adjustable Versions EN IN
Open Drain Power-Good (PG) Status
Output (Fixed Options Only) OUTPUT
FB/PG Tab is GND
Dropout Voltage Typically 250 m V at 5 A (TPS75533)
TO–263 (KTT) PACKAGE Low 125 µA Typical Quiescent Current (TOP VIEW)
Fast Transient Response
3% Tolerance Over Specified Conditions for IN Fixed-Output Versions GND
OUTPUT
Available in 5-Pin TO–220 and TO–263
FB/PG
Surface-Mount Packages Tab is GND
Thermal Shutdown Protection
description The TPS755xx family of 5-A low dropout (LDO) regulators contains four fixed voltage option regulators with integrated power-good (PG) and an adjustable voltage option regulator. These devices are capable of supplying
an in tp lt ag
5 A of output current with a dropout of 250 m V (TPS75533). Therefore, the device is capable of performing a 3.3-V to 2.5-V conversion. Quiescent current is 125 µA at full load and drops down to less than 1 µA when the device is disabled. The TPS755xx is designed to have fast transient response for large load current changes.
TPS75533 DROPOUT VOLTAGE
TPS75515
LOAD TRANSIENT RESPONSE
JUNCTION TEMPERATURE
IO = 5 A VO = 1.5 V VO = 3.3 V Co = 100 µF
–100 di 1.25
dt µs
tp rr en –150
t – Time – µs
TJ – Junction Temperature – °C
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Copyright 2001, Texas Instruments Incorporated
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
