These low-dropout voltage regulators are high-performance LDOs built for reliable power management in advanced electronic and battery-powered systems. The product offers fast transient response and ultra-low dropout voltage, ensuring stable operation even under demanding load changes. The manual details models featuring integrated Power-On Reset (TPS777xx) or Power Good (PG) output (TPS778xx), providing critical system status signaling. Engineers designing embedded or microcomputer systems will find these regulators ideal for fixed or adjustable outputs ranging from 1.5V to 3.3V, balancing high reliability with excellent efficiency and low quiescent current draw.

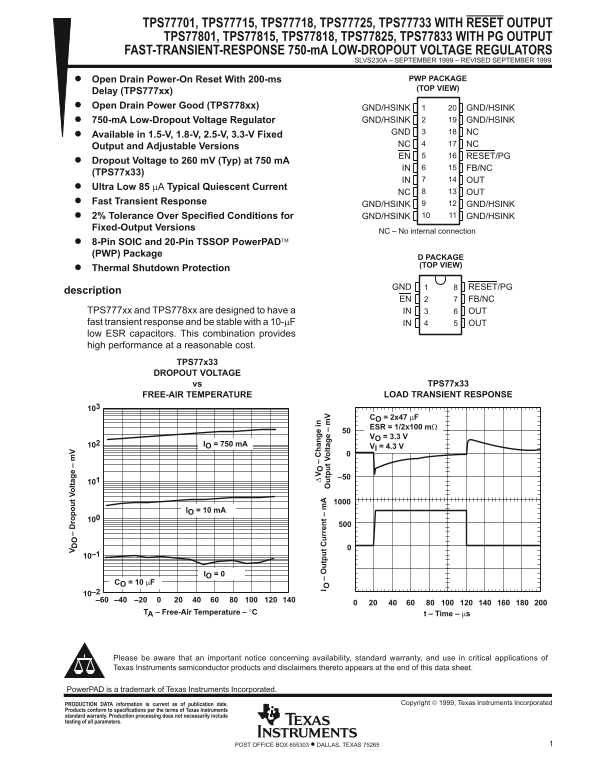

Page 1 Text Content
TPS77701, TPS77715, TPS77718, TPS77725, TPS77733 WITH RESET OUTPUT TPS77801, TPS77815, TPS77818, TPS77825, TPS77833 WITH PG OUTPUT FAST-TRANSIENT-RESPONSE 750-m A LOW-DROPOUT VOLTAGE REGULATORS
SLVS230A – SEPTEMBER 1999 – REVISED SEPTEMBER 1999
ro lt ag
Open Drain Power-On Reset With 200-ms PWP PACKAGE (TOP VIEW)
Delay (TPS777xx) Open Drain Power Good (TPS778xx) GND/HSINK GND/HSINK
750-m A Low-Dropout Voltage Regulator GND/HSINK GND/HSINK GND NC
Available in 1.5-V, 1.8-V, 2.5-V, 3.3-V Fixed
Output and Adjustable Versions NC NC EN RESET/PG
Dropout Voltage to 260 m V (Typ) at 750 m A
IN FB/NC
(TPS77x33)
IN OUT
Ultra Low 85 µA Typical Quiescent Current
NC OUT
Fast Transient Response
GND/HSINK GND/HSINK
2% Tolerance Over Specified Conditions for GND/HSINK GND/HSINK Fixed-Output Versions
NC – No internal connection
8-Pin SOIC and 20-Pin TSSOP Power PAD (PWP) Package
D PACKAGE (TOP VIEW)
Thermal Shutdown Protection
GND RESET/PG
description
EN FB/NC
TPS777xx and TPS778xx are designed to have a IN OUT
an in
fast transient response and be stable with a 10-µF tp rr en IN OUT
tp lt ag
low ESR capacitors. This combination provides high performance at a reasonable cost.
TPS77x33 DROPOUT VOLTAGE
vs TPS77x33
FREE-AIR TEMPERATURE LOAD TRANSIENT RESPONSE
CO = 2x47 µF ESR = 1/2x100 mΩ VO = 3.3 V
IO = 750 m A
VI = 4.3 V
IO = 10 m A
IO = 0
CO = 10 µF
–60 –40 –20 TA – Free-Air Temperature – °C t – Time – µs
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Power PAD is a trademark of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date. Copyright 1999, Texas Instruments Incorporated
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments TMS77701 Data Sheet
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 22 |
| File Size | 310.72 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the dropout voltage at 750 mA for TPS77x33?
Typically 260 mV at 750 mA output current.
What packages are available for these regulators?
8-pin SOIC and 20-pin TSSOP PowerPAD (PWP) packages.
What does the RESET output do on TPS777xx?
It initiates a reset in microcomputer systems during an undervoltage condition.
How do I enable sleep mode?
Apply a TTL high signal to the EN pin to shut down the regulator.
