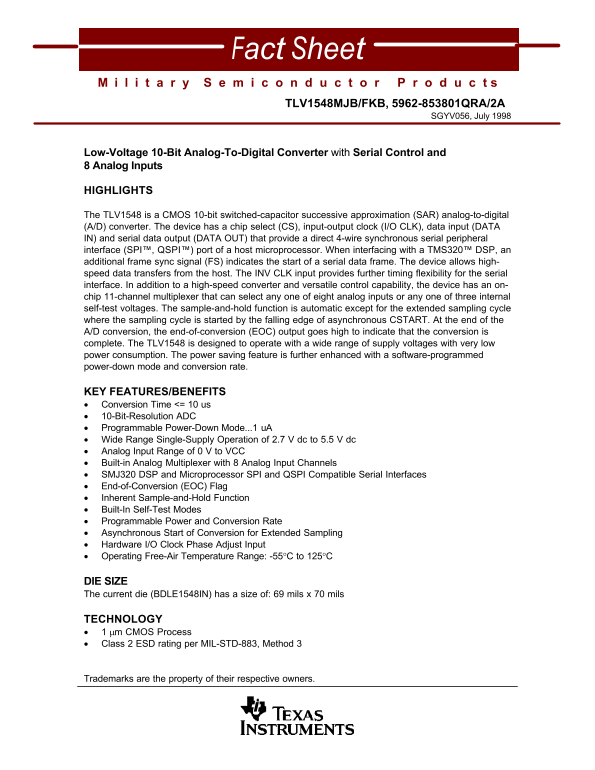

Page 1 Text Content
Fact Sheet
TLV1548MJB/FKB, 5962-853801QRA/2A
SGYV056, July 1998
Low-Voltage 10-Bit Analog-To-Digital Converter with Serial Control and 8 Analog Inputs
HIGHLIGHTS
The TLV1548 is a CMOS 10-bit switched-capacitor successive approximation (SAR) analog-to-digital (A/D) converter. The device has a chip select (CS), input-output clock (I/O CLK), data input (DATA IN) and serial data output (DATA OUT) that provide a direct 4-wire synchronous serial peripheral interface (SPI™, QSPI™) port of a host microprocessor. When interfacing with a TMS320™ DSP, an additional frame sync signal (FS) indicates the start of a serial data frame. The device allows high- speed data transfers from the host. The INV CLK input provides further timing flexibility for the serial interface. In addition to a high-speed converter and versatile control capability, the device has an on- chip 11-channel multiplexer that can select any one of eight analog inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic except for the extended sampling cycle where the sampling cycle is started by the falling edge of asynchronous CSTART. At the end of the A/D conversion, the end-of-conversion (EOC) output goes high to indicate that the conversion is complete. The TLV1548 is designed to operate with a wide range of supply voltages with very low power consumption. The power saving feature is further enhanced with a software-programmed power-down mode and conversion rate.
KEY FEATURES/BENEFITS • Conversion Time <= 10 us • 10-Bit-Resolution ADC • Programmable Power-Down Mode...1 u A • Wide Range Single-Supply Operation of 2.7 V dc to 5.5 V dc • Analog Input Range of 0 V to VCC • Built-in Analog Multiplexer with 8 Analog Input Channels • SMJ320 DSP and Microprocessor SPI and QSPI Compatible Serial Interfaces • End-of-Conversion (EOC) Flag • Inherent Sample-and-Hold Function • Built-In Self-Test Modes • Programmable Power and Conversion Rate • Asynchronous Start of Conversion for Extended Sampling • Hardware I/O Clock Phase Adjust Input • Operating Free-Air Temperature Range: -55°C to 125°C
DIE SIZE The current die (BDLE1548IN) has a size of: 69 mils x 70 mils
TECHNOLOGY • 1 µm CMOS Process • Class 2 ESD rating per MIL-STD-883, Method 3
Trademarks are the property of their respective owners.
Page Summary Contents For Texas Instruments - TLV1548MJB-FKB-5962-853801QRA-2A Data Converter Specifications Owner's Manual
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 3 |
| File Size | 24.52 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What type of interface does the TLV1548 device use?
It provides a direct 4-wire synchronous serial peripheral interface (SPI™, QSPI™) port, and optionally includes an additional frame sync signal (FS) when interfacing with a DSP.
Does the device have multiple analog inputs or internal references?
Yes, it has a built-in 11-channel multiplexer that can select any one of eight analog inputs or any one of three internal self-test voltages.
What environmental temperatures can this converter operate in?
The operating free-air temperature range is -55°C to 125°C.
How is the conversion finished and signaled?
At the end of the A/D conversion, the end-of-conversion (EOC) output goes high to indicate that the conversion is complete.
