Texas Instruments TLV1117 Data Sheet

Summary

Experience robust power management with the TLV1117 low-dropout voltage regulator. This efficient device delivers up to 800 mA of current and is available in fixed options ($\text{e.g., 3.3 V, 5 V}$) or can be configured for adjustable output voltages. The manual details comprehensive technical specifications, including reliable operation down to a 1-V dropout voltage and compatibility across multiple surface-mount packages (QFN, TO-263). It is designed specifically for engineers developing power-sensitive embedded systems where high efficiency and stable regulation are critical.

📄 Preview PAGE OF 20

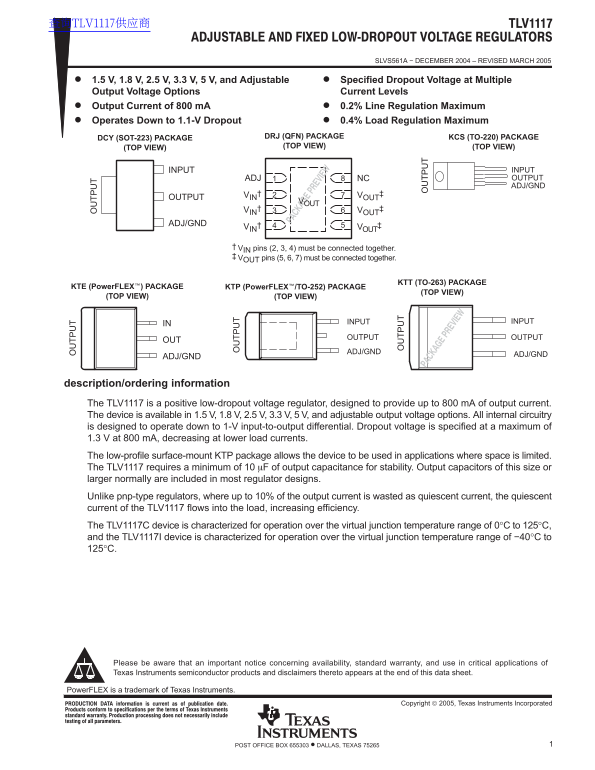

Page 1 Text Content

查询TLV1117供应商

SLVS561A − DECEMBER 2004 – REVISED MARCH 2005

1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Specified Dropout Voltage at Multiple Output Voltage Options Current Levels Output Current of 800 m A 0.2% Line Regulation Maximum Operates Down to 1.1-V Dropout 0.4% Load Regulation Maximum

DCY (SOT-223) PACKAGE DRJ (QFN) PACKAGE KCS (TO-220) PACKAGE (TOP VIEW) (TOP VIEW) (TOP VIEW)

INPUT INPUT ADJ NC OUTPUT ADJ/GND

VIN† VOUT‡

OUTPUT

VIN† VOUT‡

ADJ/GND

VIN† VOUT‡

VIN pins (2, 3, 4) must be connected together. VOUT pins (5, 6, 7) must be connected together.

KTT (TO-263) PACKAGE

KTE (Power FLEX) PACKAGE KTP (Power FLEX/TO-252) PACKAGE

(TOP VIEW)

(TOP VIEW) (TOP VIEW)

INPUT INPUT

OUTPUT OUTPUT

ADJ/GND

ADJ/GND

ADJ/GNDO

description/ordering information The TLV1117 is a positive low-dropout voltage regulator, designed to provide up to 800 m A of output current. The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 m A, decreasing at lower load currents. The low-profile surface-mount KTP package allows the device to be used in applications where space is limited. The TLV1117 requires a minimum of 10 F of output capacitance for stability. Output capacitors of this size or larger normally are included in most regulator designs. Unlike pnp-type regulators, where up to 10% of the output current is wasted as quiescent current, the quiescent current of the TLV1117 flows into the load, increasing efficiency. The TLV1117C device is characterized for operation over the virtual junction temperature range of 0°C to 125°C, and the TLV1117I device is characterized for operation over the virtual junction temperature range of −40°C to 125°C.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Power FLEX is a trademark of Texas Instruments.

! "#$ !  %#&'" ($) Copyright  2005, Texas Instruments Incorporated

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments TLV1117 Data Sheet

Page 1 查询TLV1117供应商 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable Specified Dropout Voltage at Multiple Output Voltage Options Current Levels Output Current of...
Page 2 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 description/ordering information (continued) TLV1117C ORDERING INFORMATION VO TYP ORDERABLE TOP-SIDE TJ PACKAGE† (V) PART NUMBER MARKING QFN (DRJ) Reel of...
Page 3 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TLV1117I ORDERING INFORMATION VO TYP ORDERABLE TOP-SIDE TJ PACKAGE† (V) PART NUMBER MARKING QFN (DRJ) Reel of 1000 TLV1117-15IDRJR PREVIEW 1.5 V SOT-223 (...
Page 4 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 functional block diagram Thermal Limit Current Limit GND/ADJ (Fixed-Voltage Version) GND/ADJ (Adjustable Version) absolute maximum ratings over operating ...
Page 5 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 package thermal data (see Note 1) PACKAGE BOARD JP† JC JA Power FLEX (KTE) High K, JESD 51-5 2.7°C/W 23°C/W Power FLEX/TO-252 (KTP) High K, JESD 51-5 3°C/...
Page 6 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TLV1117C electrical characteristics, TJ = 0°C to 125°C, all typical values are at TJ = 25°C (unless otherwise noted) PARAMETER TEST CONDITIONS† MIN TYP MA...
Page 7 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TLV1117C electrical characteristics, TJ = 0°C to 125°C, all typical values are at TJ = 25°C (unless otherwise noted) (continued) PARAMETER TEST CONDITIONS...
Page 8 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TLV1117I electrical characteristics, TJ = -40°C to 125°C, all typical values are at TJ = 25°C (unless otherwise noted) PARAMETER TEST CONDITIONS† MIN TYP ...
Page 9 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TLV1117I electrical characteristics, TJ = 40°C to 125°C, all typical values are at TJ = 25°C (unless otherwise noted) (continued) PARAMETER TEST CONDITION...
Page 10 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 TYPICAL CHARACTERISTICS (GRAPHS PREVIEW) Figure 1. Short-Circuit Current vs (VIN − VOUT) Figure 2. Load Regulation vs Temperature Figure 3. Ripple Rejecti...
Page 11 SLVS561A − DECEMBER 2004 – REVISED MARCH 2005 APPLICATION INFORMATION 1N4002 (See Note D) TLV1117 − ADJ INPUT OUTPUT VOVI ADJ/GND 10 µF IADJ (see Note C) 100 µF (see Note A) (see Note B) VOUT is calcu...
Page 12 PACKAGE OPTION ADDENDUM www.ti.com 30-Mar-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing Qty TLV1117-15CDCY PREVIE...
Page 13 PACKAGE OPTION ADDENDUM www.ti.com 30-Mar-2005 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device wil...
Page 14 MECHANICAL DATA MPDS094A – APRIL 2001 – REVISED JUNE 2002 DCY (R-PDSO-G4) PLASTIC SMALL-OUTLINE Gauge Plane 4,60 (0.181) 0,75 (0.030) MIN 1,70 (0.067) 1,80 (0.071) MAX 1,50 (0.059) Seating Plane NOTES...
Page 15 MECHANICAL DATA MPFM001E – OCTOBER 1994 – REVISED JANUARY 2001 KTE (R-PSFM-G3) Power FLEX PLASTIC FLANGE-MOUNT 0.220 (5,59) 0.010 (0,25) NOM NOM Thermal Tab (See Note C) Seating Plane NOM Gage Plane ...
Page 16 MECHANICAL DATA MPSF001F – JANUARY 1996 – REVISED JANUARY 2002 KTP (R-PSFM-G2) Power FLEX PLASTIC FLANGE-MOUNT PACKAGE 0.130 (3,30) NOM 0.010 (0,25) NOM Thermal Tab (See Note C) 0.032 (0,81) MAX Seat...
