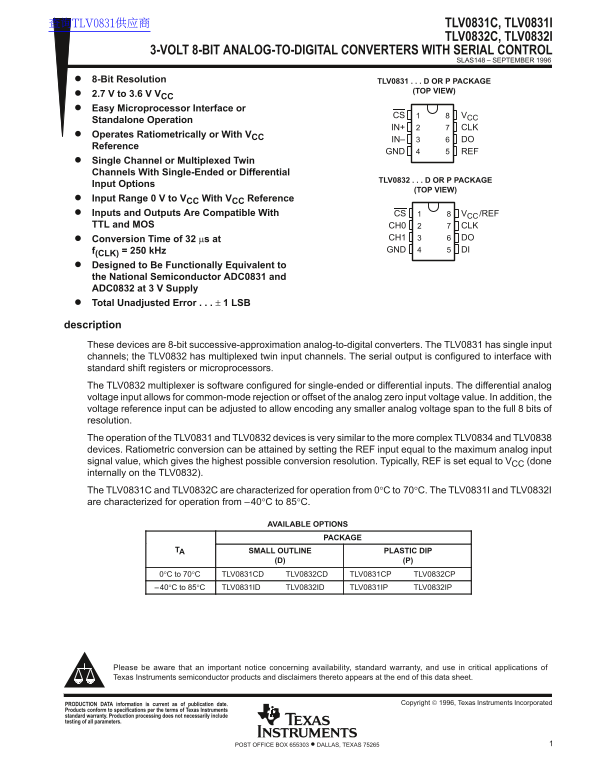

查询TLV0831供应商 TLV0831C, TLV0831I

TLV0832C, TLV0832I

3-VOLT 8-BIT ANALOG-TO-DIGITAL CONVERTERS WITH SERIAL CONTROL

SLAS148 – SEPTEMBER 1996

8-Bit Resolution TLV0831 D OR P PACKAGE

(TOP VIEW)

2.7 V to 3.6 V VCC Easy Microprocessor Interface or

CS VCC

Standalone Operation

IN+ CLK

Operates Ratiometrically or With VCC

IN– DO

Reference

GND REF

Single Channel or Multiplexed Twin Channels With Single-Ended or Differential

TLV0832 D OR P PACKAGE

Input Options

(TOP VIEW)

Input Range 0 V to VCC With VCC Reference Inputs and Outputs Are Compatible With CS VCC/REF TTL and MOS CH0 CLK

Conversion Time of 32 µs at CH1 DO f(CLK) = 250 k Hz GND DI

Designed to Be Functionally Equivalent to the National Semiconductor ADC0831 and ADC0832 at 3 V Supply Total Unadjusted Error 1 LSB

description These devices are 8-bit successive-approximation analog-to-digital converters. The TLV0831 has single input channels; the TLV0832 has multiplexed twin input channels. The serial output is configured to interface with standard shift registers or microprocessors. The TLV0832 multiplexer is software configured for single-ended or differential inputs. The differential analog voltage input allows for common-mode rejection or offset of the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution. The operation of the TLV0831 and TLV0832 devices is very similar to the more complex TLV0834 and TLV0838 devices. Ratiometric conversion can be attained by setting the REF input equal to the maximum analog input signal value, which gives the highest possible conversion resolution. Typically, REF is set equal to VCC (done internally on the TLV0832). The TLV0831C and TLV0832C are characterized for operation from 0°C to 70°C. The TLV0831I and TLV0832I are characterized for operation from –40°C to 85°C.

AVAILABLE OPTIONS

PACKAGE

TA SMALL OUTLINE PLASTIC DIP

0°C to 70°C TLV0831CD TLV0832CD TLV0831CP TLV0832CP –40°C to 85°C TLV0831ID TLV0832ID TLV0831IP TLV0832IP

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright  1996, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
