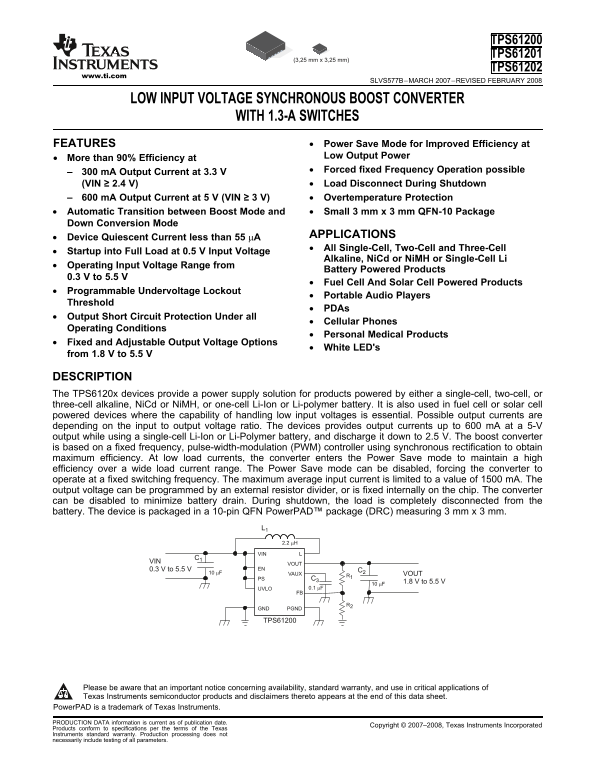

Texas Instruments TPS61200 11 12 13 Specifications Owner's Manual User Guide
Summary
This 3mm x 3mm QFN-10 synchronous boost converter delivers up to 600 mA output current, offering over 90% efficiency with Power Save mode. Designed for portable electronics like PDAs and audio players, it efficiently manages single-cell Li-Ion or alkaline battery inputs ranging from 0.3V to 5.5V.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 25 |
| File Size | 977.86 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the typical applications for the TPS6120x boost converter?
It's used in products powered by single/multi-cell batteries, fuel cells, or solar cells, like portable audio players, PDAs, cellular phones, and personal medical products.
What is the input voltage range for the TPS6120x?
The operating input voltage range is from 0.3 V to 5.5 V.
What is the output current capability from a single-cell Li-Ion battery?
It provides up to 600 mA at a 5-V output when discharging a single-cell Li-Ion or Li-Polymer battery down to 2.5 V.
What package does the TPS6120x come in?
It is packaged in a small 10-pin QFN PowerPAD package measuring 3 mm x 3 mm.
How is the device protected during storage and handling?
The leads should be shorted together or the device placed in conductive foam to prevent electrostatic damage to the MOS gates, as it has limited built-in ESD protection.
