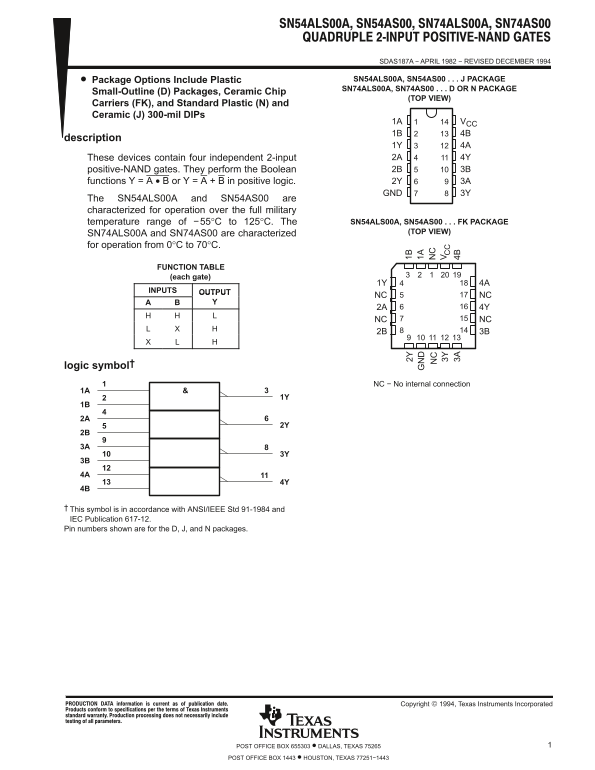

Texas Instruments SN54ALS00A, SN54AS00, SN74ALS00A, SN74AS00 Owner's Manual & User Guide
Summary
These versatile integrated circuits implement four independent 2-input Positive NAND gates, providing a fundamental building block for complex digital logic systems. The comprehensive manual details full electrical specifications, precise operating voltage parameters, package options, and extended temperature ranges, including reliable military-grade operation. It is essential documentation for electronics engineers and product designers who require accurate technical data to build robust, high-performance circuit boards.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 17 |
| File Size | 688.16 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What function do these gates perform?
They contain four independent 2-input positive-NAND gates, performing the Boolean functions Y = A • B or Y = A + B in positive logic.
What are the operating temperature ranges for both chip models?
The SN54ALS00A supports −55°C to 125°C, while the SN74ALS00A operates from 0°C to 70°C.
Are these chips suitable for automotive applications?
No, they are not designed for use in automotive environments unless specific TI products designated as compliant with ISO/TS 16949 requirements are used.
What is the minimum required supply voltage (VCC)?
The nominal operating supply voltage must be at least 4.5 V, up to 5.5 V.
