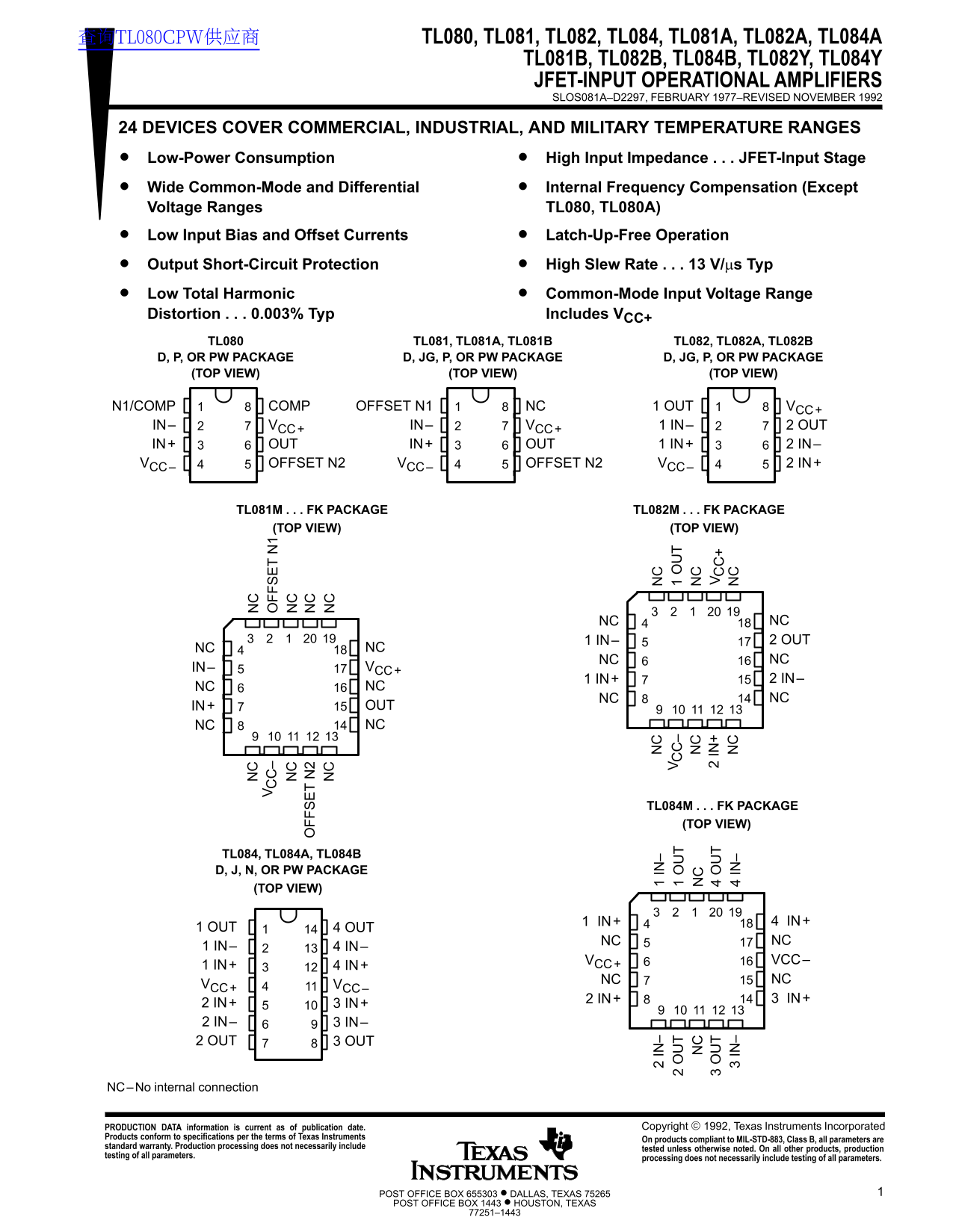

Texas Instruments TL080, TL081, TL082, TL084, TL081A, TL082A, TL084A TL081B, TL082B, TL084B, TL082Y, TL084Y JFET-INPUT OPERATIONAL AMPLIFIERS Data Manual
Summary
Explore the highly versatile TL08x family of JFET-input Operational Amplifiers. These precision devices are designed for reliable high-performance amplification across demanding applications. Featuring high slew rates, low input bias currents, and latch-up-free operation, this series provides stable electrical performance in commercial, industrial, and full military temperature ranges. The manual covers comprehensive technical details, package options (Plastic DIP), and specifications needed for professional circuit design.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 19 |
| File Size | 372.72 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What do the device suffixes (C, I, M) indicate regarding operating temperature?
The C suffix characterizes operation from 0°C to 70°C; the I suffix covers -40°C to 85°C; and the M suffix handles the full military range of –55°C to 125°C.
What are the key operational features of this JFET-input amplifier family?
They feature high slew rates (13 V/μs Typ), low input bias/offset currents, and support for offset adjustment or external compensation.
Does the device include provisions for accommodating varying temperature requirements?
Yes, the TL08_ family offers multiple suffixes and types to serve commercial, industrial, and military temperature ranges (C, I, M).
