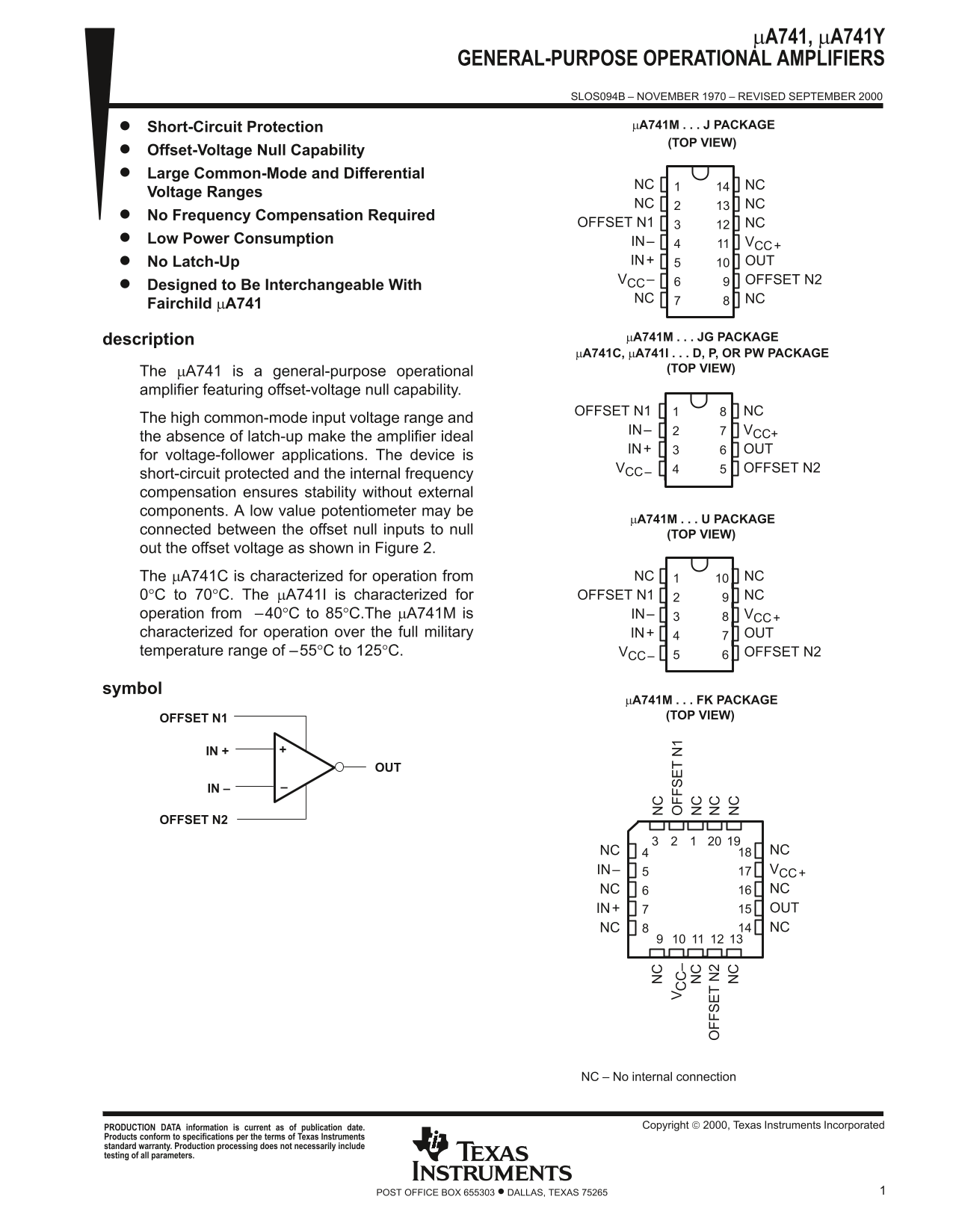

Texas Instruments μA741, μA741Y General-Purpose Operational Amplifiers Owner's Manual - User Guide
Summary
This comprehensive manual details the mA741 general-purpose operational amplifier, an essential component for electrical signal conditioning. Designed with industry-leading features such as offset-voltage null capability, high common-mode voltage input, and robust short-circuit protection, it is ideal for stable voltage follower applications. The guide covers extensive technical data, varying temperature grades (e.g., -55°C to 125°C), package options, and full electrical specifications, making it indispensable for electronics engineers designing reliable analog circuits.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 21 |
| File Size | 606.52 KB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which mA741 version suits industrial or wide temperature ranges?
The mA741M is characterized for operation over the full military temperature range of –55°C to 125°C.
Is external frequency compensation required for stable performance?
No, the internal frequency compensation ensures stability without external components.
How do I address offset voltage in this amplifier?
The device has an offset-voltage null capability; a low value potentiometer can be connected between the offset null inputs to compensate for the offset voltage.
Can this product be used in automotive environments?
No. The products are only intended for use in automotive applications if they are specifically designated as compliant with ISO/TS 16949 requirements.
