The THS1031 is a high-performance, 10-bit, 30 MSPS CMOS Analog-to-Digital Converter designed for demanding video and imaging applications. This comprehensive manual details its engineering capabilities, including single-ended or differential input options, an integrated Programmable Gain Amplifier (PGA), and built-in clamp functionality crucial for video signal restoration. Ideal for circuit developers working in set-top boxes, digital cameras, multimedia systems, and high-speed communications, the THS1031 ensures exceptional accuracy with configurable reference voltages, making precise signal processing easier than ever.

📄 Preview ‹ PAGE OF 26 ›

‹

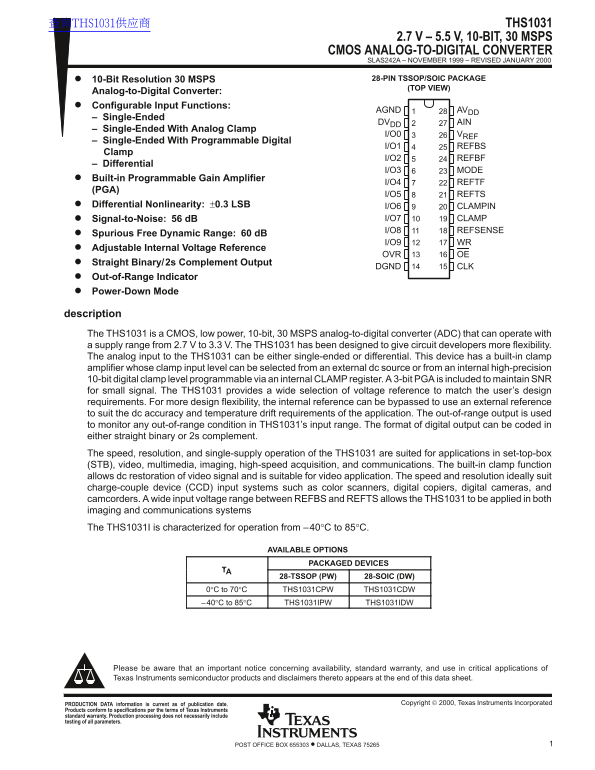

Texas Instruments THS1031 Data Sheet - Page 1

›

Page 1 Text Content

查询THS1031供应商 THS1031

2.7 V – 5.5 V, 10-BIT, 30 MSPS

CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000

10-Bit Resolution 30 MSPS 28-PIN TSSOP/SOIC PACKAGE

(TOP VIEW)

Analog-to-Digital Converter: Configurable Input Functions:

AGND AVDD

– Single-Ended

DVDD AIN

– Single-Ended With Analog Clamp

I/O0 VREF

– Single-Ended With Programmable Digital

I/O1 REFBS

Clamp

I/O2 REFBF

– Differential

I/O3 MODE

Built-in Programmable Gain Amplifier

I/O4 REFTF

(PGA)

I/O5 REFTS

Differential Nonlinearity: ±0.3 LSB I/O6 CLAMPIN

Signal-to-Noise: 56 d B I/O7 CLAMP I/O8 REFSENSE

Spurious Free Dynamic Range: 60 d B

I/O9 WR

Adjustable Internal Voltage Reference

OVR OE

Straight Binary/2s Complement Output

DGND CLK

Out-of-Range Indicator Power-Down Mode

description The THS1031 is a CMOS, low power, 10-bit, 30 MSPS analog-to-digital converter (ADC) that can operate with a supply range from 2.7 V to 3.3 V. The THS1031 has been designed to give circuit developers more flexibility. The analog input to the THS1031 can be either single-ended or differential. This device has a built-in clamp amplifier whose clamp input level can be selected from an external dc source or from an internal high-precision 10-bit digital clamp level programmable via an internal CLAMP register. A 3-bit PGA is included to maintain SNR for small signal. The THS1031 provides a wide selection of voltage reference to match the user’s design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The out-of-range output is used to monitor any out-of-range condition in THS1031’s input range. The format of digital output can be coded in either straight binary or 2s complement. The speed, resolution, and single-supply operation of the THS1031 are suited for applications in set-top-box (STB), video, multimedia, imaging, high-speed acquisition, and communications. The built-in clamp function allows dc restoration of video signal and is suitable for video application. The speed and resolution ideally suit charge-couple device (CCD) input systems such as color scanners, digital copiers, digital cameras, and camcorders. A wide input voltage range between REFBS and REFTS allows the THS1031 to be applied in both imaging and communications systems The THS1031I is characterized for operation from –40°C to 85°C.

AVAILABLE OPTIONS

PACKAGED DEVICES

28-TSSOP (PW) 28-SOIC (DW)

0°C to 70°C THS1031CPW THS1031CDW –40°C to 85°C THS1031IPW THS1031IDW

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright  2000, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Page Summary Contents For Texas Instruments THS1031 Data Sheet

Page 1 查询THS1031供应商 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 10-Bit Resolution 30 MSPS 28-PIN TSSOP/SOIC PACKAGE (TOP VIEW) Anal...

Page 2 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 functional block diagram Power Down CLAMP DAC CLAMPIN WR CTL CLAMP SW2 REG BIN/2...

Page 3 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 Terminal Functions TERMINAL I/O DESCRIPTION NAME NO. AGND Analog ground AIN Anal...

Page 4 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 absolute maximum ratings over operating free-air temperature (unless otherwise n...

Page 5 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 electrical characteristics, AVDD = 3 V, DVDD = 3 V, Fs = 30 MSPS/50% duty cycle,...

Page 6 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 electrical characteristics, AVDD = 3 V, DVDD = 3 V, Fs = 30 MSPS/50% duty cycle,...

Page 7 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 electrical characteristics, AVDD = 3 V, DVDD = 3 V, Fs = 30 MSPS/50% duty cycle,...

Page 8 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PARAMETER MEASUREMENT INFORMATION OE (See Note A) t(WP) t(OEW) t(WOE) t(DH)t(DZ)...

Page 9 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 TYPICAL CHARACTERISTICS POWER DISSIPATION ff ec ti ve er it er vs SAMPLING FREQU...

Page 10 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 TYPICAL CHARACTERISTICS ff ec ti ve er it ff ec ti ve er it EFFECTIVE NUMBER OF ...

Page 11 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 TYPICAL CHARACTERISTICS EFFECTIVE NUMBER OF BITS if fe re ti al lin ea ri ty ff ...

Page 12 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 TYPICAL CHARACTERISTICS IN In te ra l N lin ea ri ty INTEGRAL NONLINEARITY vs IN...

Page 13 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION Table 1. Mode Selection INPUT MODE REFSENSE VREF REFTS R...

Page 14 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION reference operations (continued) 1-V reference: The inte...

Page 15 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION reference operations (continued) External divider: The i...

Page 16 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION reference operations (continued) ADC reference The MODE ...

Page 17 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION analog input mode(continued) AINREFTF THS1031 REFBF SHA ...

Page 18 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION analog input mode(continued) Internal ADC Reference Mode...

Page 19 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION analog input mode(continued) differential input In this ...

Page 20 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION digital input mode (continued) REFTF DAC (9:0) 3/4 (REFT...

Page 21 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION digital input mode (continued) PGA(2–0): (Default = 001)...

Page 22 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION clamp operation (continued) Clamp and Droop Analysis CLA...

Page 23 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 PRINCIPLES OF OPERATION clamp operation (continued) requirements For a single di...

Page 24 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 MECHANICAL DATA PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE 14 PINS SHOWN 0,15 NOM Gag...

Page 25 THS1031 2.7 V – 5.5 V, 10-BIT, 30 MSPS CMOS ANALOG-TO-DIGITAL CONVERTER SLAS242A – NOVEMBER 1999 – REVISED JANUARY 2000 MECHANICAL DATA DW (R-PDSO-G**) PLASTIC SMALL-OUTLINE 16 PINS SHOWN 0.299 (7,59)...

Page 26 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain...

Manual Details

Brand	Texas Instruments
Pages	26
File Size	357.68 KB
Published	June 17, 2026

2 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the recommended supply voltage range for operation?

The THS1031 operates with a supply range from 2.7 V to 3.3 V.

Does it support various input signal types?

Yes, the analog input can be either single-ended or differential.

How does the device handle signal clipping or DC restoration?

It includes a built-in clamp amplifier that allows for dc restoration of the video signal.

What are the environmental temperature ratings and available packages?

The THS1031I is characterized for operation from –40°C to 85°C, available in TSSOP or SOIC packages.
