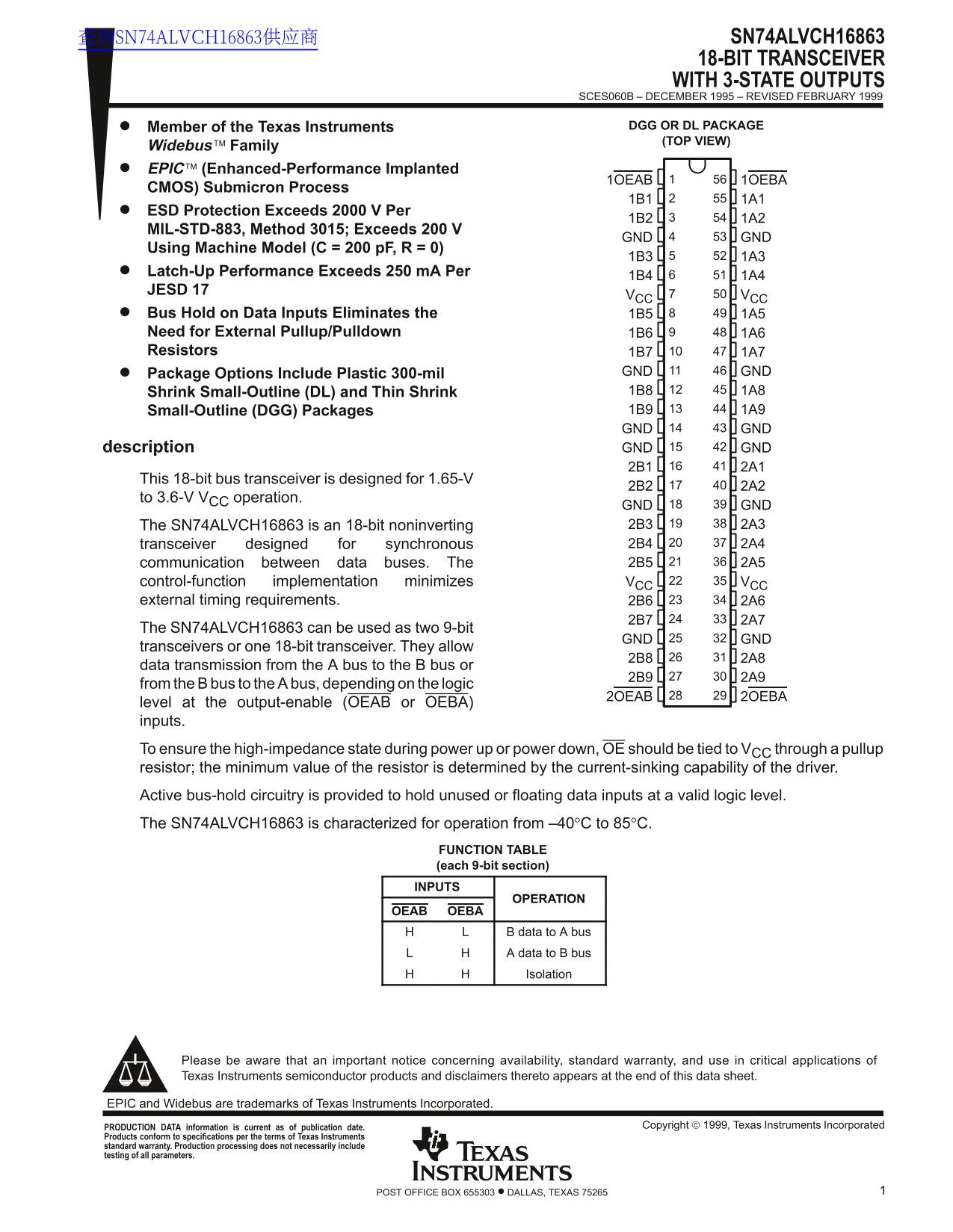

18-BIT TRANSCEIVER WITH 3-STATE OUTPUTS
SCES060B – DECEMBER 1995 – REVISED FEBRUARY 1999
Member of the Texas Instruments DGG OR DL PACKAGE (TOP VIEW)
Widebus Family EPIC (Enhanced-Performance Implanted
1OEAB 1OEBA
CMOS) Submicron Process
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
GND GND
Using Machine Model (C = 200 p F, R = 0)
Latch-Up Performance Exceeds 250 m A Per
JESD 17
VCC VCC
Bus Hold on Data Inputs Eliminates the 1B5 1A5 Need for External Pullup/Pulldown 1B6 1A6 Resistors 1B7 1A7
Package Options Include Plastic 300-mil GND GND Shrink Small-Outline (DL) and Thin Shrink 1B8 1A8 Small-Outline (DGG) Packages 1B9 1A9 GND GND
description GND GND
This 18-bit bus transceiver is designed for 1.65-V
to 3.6-V VCC operation.
GND GND The SN74ALVCH16863 is an 18-bit noninverting 2B3 2A3 transceiver designed for synchronous 2B4 2A4 communication between data buses. The 2B5 2A5
control-function implementation minimizes VCC VCC external timing requirements. 2B6 2A6
The SN74ALVCH16863 can be used as two 9-bit
GND GND
transceivers or one 18-bit transceiver. They allow
data transmission from the A bus to the B bus or
from the B bus to the A bus, depending on the logic
2OEAB 2OEBA
level at the output-enable (OEAB or OEBA) inputs. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN74ALVCH16863 is characterized for operation from –40°C to 85°C.
FUNCTION TABLE (each 9-bit section) INPUTS
OPERATION
OEAB OEBA
B data to A bus A data to B bus Isolation
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
Copyright 1999, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
