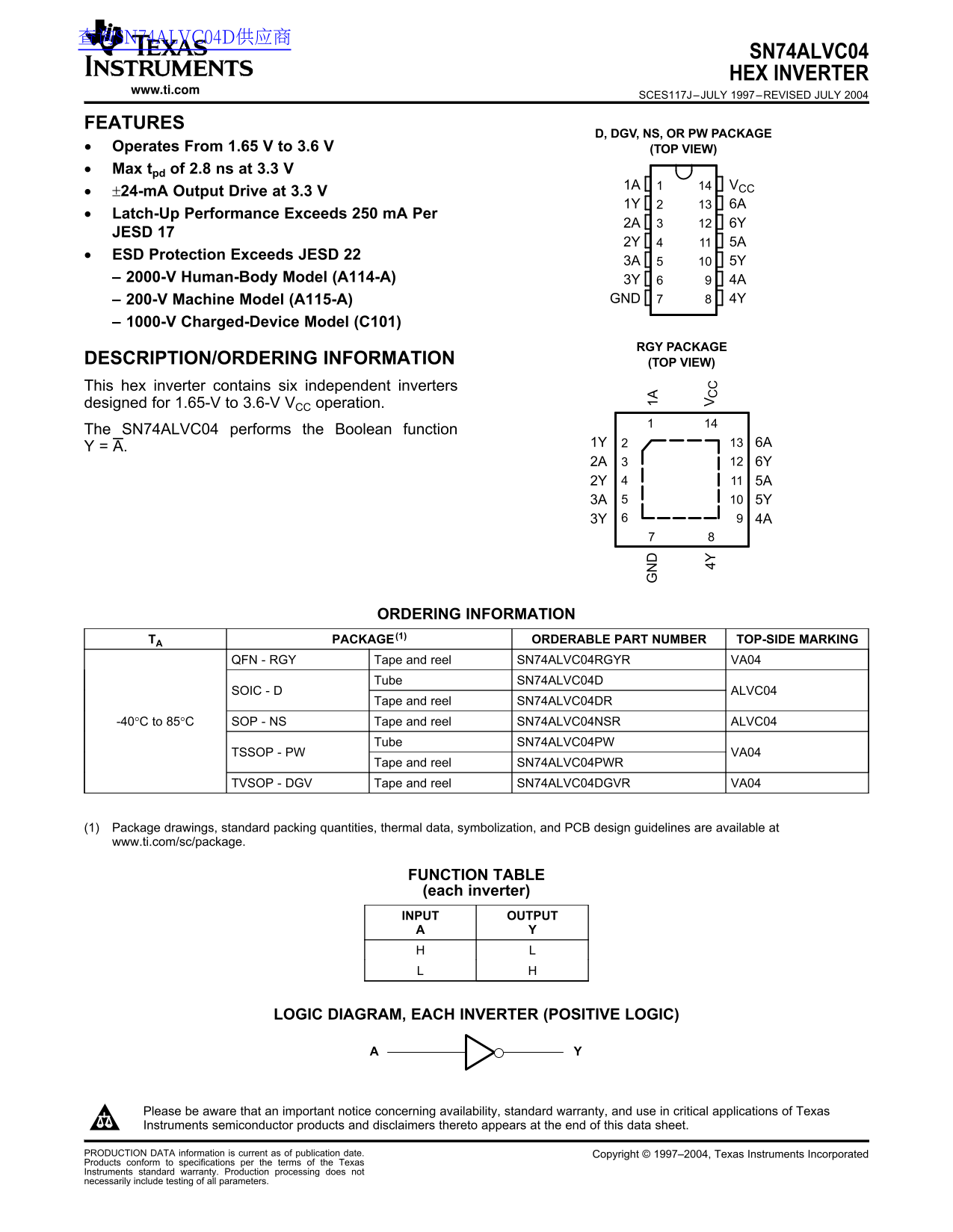

Page 1 Text Content
查询SN74ALVC04D供应商
SN74ALVC04
HEX INVERTER
www.ti.com
SCES117J–JULY 1997–REVISED JULY
FEATURES
D, DGV, NS, OR PW PACKAGE
Operates From 1.65 to 3.6 (TOP VIEW)
Max tpd of 2.8 ns at 3.3
1A VCC
±24-m A Output Drive at 3.3
Latch-Up Performance Exceeds m A Per
ESD Protection Exceeds JESD
2000-V Human-Body Model (A114-A) 3Y 4A
200-V Machine Model (A115-A) GND 4Y
1000-V Charged-Device Model (C101)
RGY PACKAGE
DESCRIPTION/ORDERING INFORMATION (TOP VIEW)
This hex inverter contains six independent inverters
designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVC04 performs the Boolean function
ORDERING INFORMATION
TA PACKAGE ORDERABLE PART NUMBER TOP-SIDE MARKING
QFN RGY Tape and reel SN74ALVC04RGYR VA04
Tube SN74ALVC04D
SOIC ALVC04
Tape and reel SN74ALVC04DR
-40°C to 85°C SOP NS Tape and reel SN74ALVC04NSR ALVC04
Tube SN74ALVC04PW
TSSOP PW VA04
Tape and reel SN74ALVC04PWR
TVSOP DGV Tape and reel SN74ALVC04DGVR VA04
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
FUNCTION TABLE
(each inverter)
INPUT OUTPUT
LOGIC DIAGRAM, EACH INVERTER (POSITIVE LOGIC)
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Copyright 1997–2004, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
