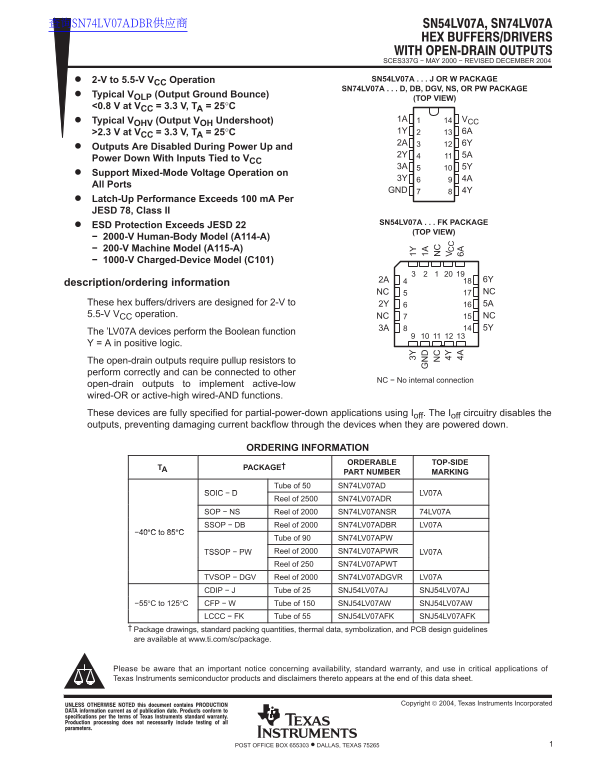

SCES337G − MAY 2000 − REVISED DECEMBER 2004

2-V to 5.5-V VCC Operation SN54LV07A J OR W PACKAGE SN74LV07A D, DB, DGV, NS, OR PW PACKAGE

Typical VOLP (Output Ground Bounce)

(TOP VIEW)

<0.8 V at VCC = 3.3 V, TA = 25°C

Typical VOHV (Output VOH Undershoot) 1A VCC >2.3 V at VCC = 3.3 V, TA = 25°C 1Y 6A 2A 6Y

Outputs Are Disabled During Power Up and

Power Down With Inputs Tied to VCC

Support Mixed-Mode Voltage Operation on

All Ports

GND 4Y

Latch-Up Performance Exceeds 100 m A Per JESD 78, Class II

SN54LV07A FK PACKAGE

ESD Protection Exceeds JESD 22

(TOP VIEW)

− 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101)

description/ordering information

NC NC

These hex buffers/drivers are designed for 2-V to 2Y 5A 5.5-V VCC operation. NC NC

The ’LV07A devices perform the Boolean function Y = A in positive logic. The open-drain outputs require pullup resistors to perform correctly and can be connected to other

NC − No internal connection

open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the 3Y 1Y

outputs, preventing damaging current backflow through the devices when they are powered down. 1A

ORDERING INFORMATION 4Y

ORDERABLE 4A TOP-SIDE 6A

TA PACKAGE†

PART NUMBER MARKING

Tube of 50 SN74LV07AD

SOIC − D LV07A

Reel of 2500 SN74LV07ADR

SOP − NS Reel of 2000 SN74LV07ANSR 74LV07A SSOP − DB Reel of 2000 SN74LV07ADBR LV07A

−40°C to 85°C

Tube of 90 SN74LV07APW TSSOP − PW Reel of 2000 SN74LV07APWR LV07A Reel of 250 SN74LV07APWT

TVSOP − DGV Reel of 2000 SN74LV07ADGVR LV07A CDIP − J Tube of 25 SNJ54LV07AJ SNJ54LV07AJ

−55°C to 125°C CFP − W Tube of 150 SNJ54LV07AW SNJ54LV07AW

LCCC − FK Tube of 55 SNJ54LV07AFK SNJ54LV07AFK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

!"#$% !%&% ' Copyright  2004, Texas Instruments Incorporated

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
