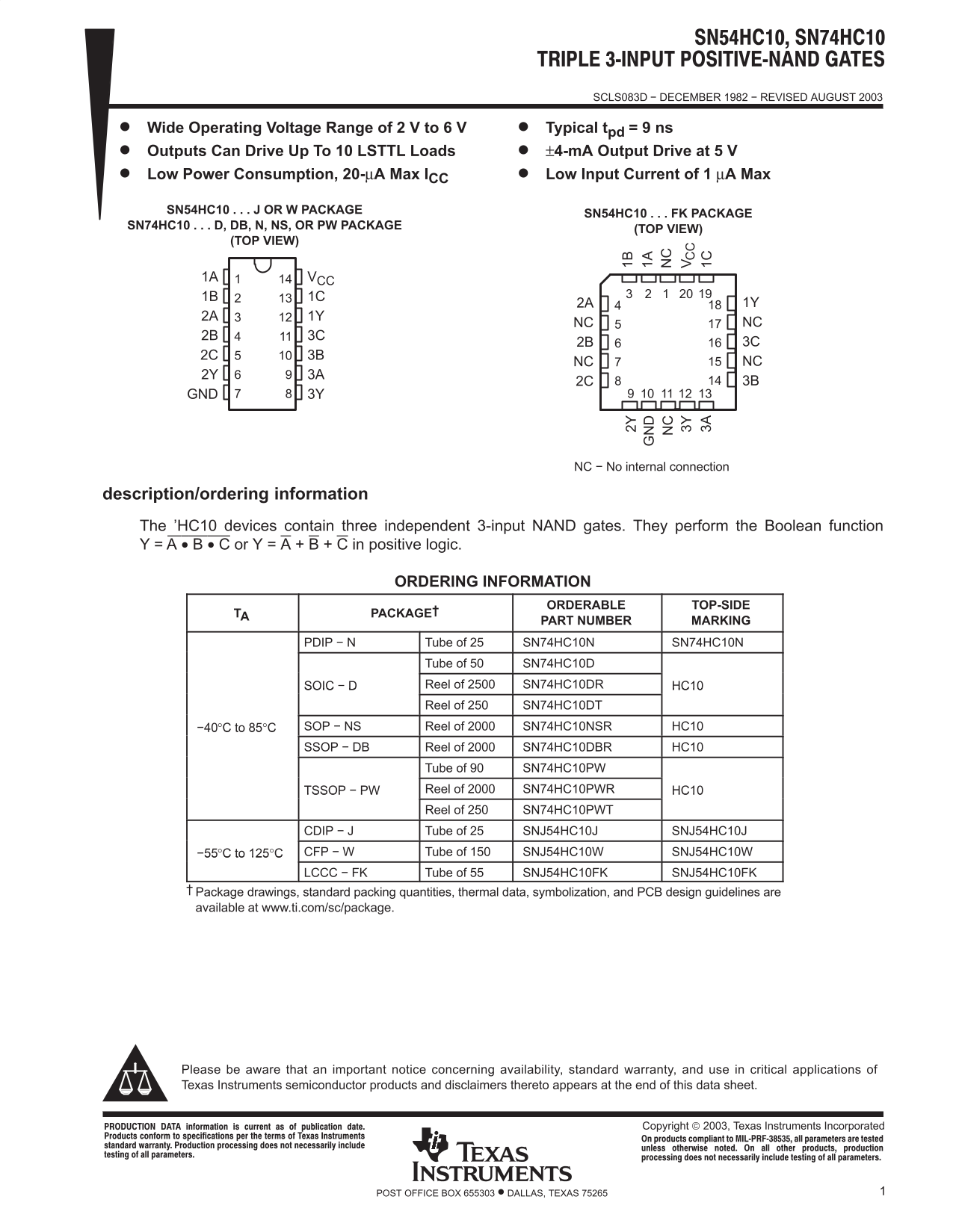

Texas Instruments SN54HC10 Data Sheet

SCLS083D − DECEMBER 1982 − REVISED AUGUST 2003

Wide Operating Voltage Range of 2 V to 6 V Typical tpd = 9 ns Outputs Can Drive Up To 10 LSTTL Loads ±4-m A Output Drive at 5 V Low Power Consumption, 20-µA Max ICC Low Input Current of 1 µA Max

SN54HC10 J OR W PACKAGE

SN54HC10 FK PACKAGE

SN74HC10 D, DB, N, NS, OR PW PACKAGE

(TOP VIEW)

(TOP VIEW)

1A VCC

NC NC

NC NC

GND 3Y

NC − No internal connection

description/ordering information The ’HC10 devices contain three independent 3-input NAND gates. They perform the Boolean function Y = A • B • C or Y = A + B + C in positive logic.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

PDIP − N Tube of 25 SN74HC10N SN74HC10N

Tube of 50 SN74HC10D SOIC − D Reel of 2500 SN74HC10DR HC10 3Y Reel of 250 SN74HC10DT 3A 1C

−40°C to 85°C SOP − NS Reel of 2000 SN74HC10NSR HC10 SSOP − DB Reel of 2000 SN74HC10DBR HC10

Tube of 90 SN74HC10PW TSSOP − PW Reel of 2000 SN74HC10PWR HC10 Reel of 250 SN74HC10PWT

CDIP − J Tube of 25 SNJ54HC10J SNJ54HC10J −55°C to 125°C CFP − W Tube of 150 SNJ54HC10W SNJ54HC10W LCCC − FK Tube of 55 SNJ54HC10FK SNJ54HC10FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
