This highly robust hex inverter integrated circuit provides six independent inverters for fundamental Boolean logic functions (Y = A). Designed for reliability across a wide voltage range (2 V to 6 V), it ensures fast switching speeds and excellent output drive capability while maintaining low power consumption. The accompanying manual is essential documentation for circuit designers, covering detailed electrical parameters, absolute maximum ratings, compatible packages, and specific operating guidelines to ensure optimal performance in digital logic applications.

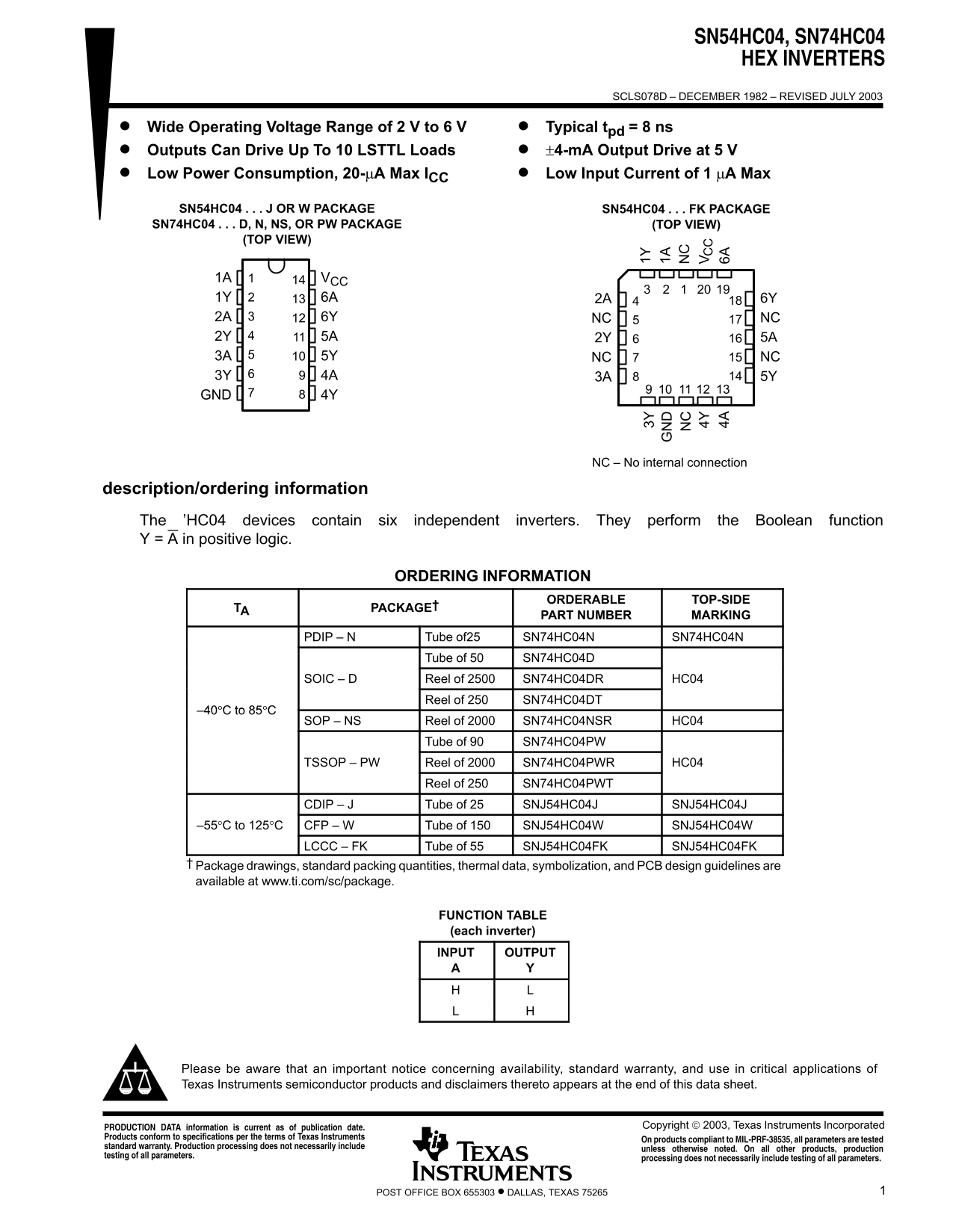

Page 1 Text Content
SN54HC04, SN74HC04 HEX INVERTERS SCLS078D – DECEMBER 1982 – REVISED JULY 2003
Wide Operating Voltage Range of 2 V to 6 V Typical tpd = 8 ns Outputs Can Drive Up To 10 LSTTL Loads ±4-m A Output Drive at 5 V Low Power Consumption, 20-µA Max ICC Low Input Current of 1 µA Max
SN54HC04 J OR W PACKAGE SN54HC04 FK PACKAGE SN74HC04 D, N, NS, OR PW PACKAGE (TOP VIEW)
(TOP VIEW)
1A VCC
1Y 6A 2A 6Y 2A 6Y NC NC 2Y 5A 2Y 5A 3A 5Y NC NC 3Y 4A 3A 5Y GND 4Y
NC – No internal connection
description/ordering information The ’HC04 devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.
ORDERING INFORMATION
ORDERABLE TOP-SIDE
TA PACKAGE†
PART NUMBER MARKING
PDIP – N Tube of25 SN74HC04N SN74HC04N
Tube of 50 SN74HC04D
SOIC – D Reel of 2500 SN74HC04DR HC04
Reel of 250 SN74HC04DT
40°C to 85°C
SOP – NS Reel of 2000 SN74HC04NSR HC04
Tube of 90 SN74HC04PW
TSSOP – PW Reel of 2000 SN74HC04PWR HC04
Reel of 250 SN74HC04PWT
CDIP – J Tube of 25 SNJ54HC04J SNJ54HC04J
–55°C to 125°C CFP – W Tube of 150 SNJ54HC04W SNJ54HC04W
LCCC – FK Tube of 55 SNJ54HC04FK SNJ54HC04FK
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
FUNCTION TABLE (each inverter) INPUT OUTPUT
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments SN54HC04 SN74HC04 DATA SHEET
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 16 |
| File Size | 495.24 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What electrical function do the HC04 devices perform?
The HC04 devices contain six independent inverters, performing the Boolean function Y = A in positive logic.
What is the operating temperature range for this component?
The recommended operating free-air temperature range is from -40°C to 85°C.
How should an unused input be kept during operation?
All unused inputs of the device must be held at VCC or GND to ensure proper device operation.
What are the maximum output current ratings (continuous)?
The continuous output current (I_O) is rated at ±25 mA CC.
