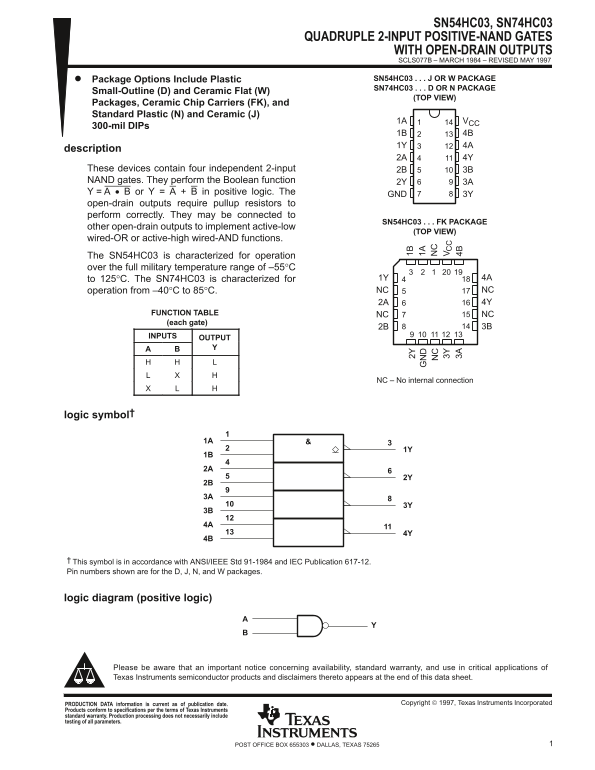

Texas Instruments SN54HC03 Data Sheet

SN54HC03, SN74HC03

QUADRUPLE 2-INPUT POSITIVE-NAND GATES

WITH OPEN-DRAIN OUTPUTS SCLS077B – MARCH 1984 – REVISED MAY 1997 Package Options Include Plastic SN54HC03 J OR W PACKAGE SN74HC03 D OR N PACKAGE

Small-Outline (D) and Ceramic Flat (W)

(TOP VIEW)

Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J)

1A VCC

300-mil DIPs

description

These devices contain four independent 2-input 2B 3B NAND gates. They perform the Boolean function 2Y 3A Y = A • B or Y = A + B in positive logic. The

GND 3Y

open-drain outputs require pullup resistors to perform correctly. They may be connected to

SN54HC03 FK PACKAGE

other open-drain outputs to implement active-low

(TOP VIEW)

wired-OR or active-high wired-AND functions. The SN54HC03 is characterized for operation over the full military temperature range of –55°C

to 125°C. The SN74HC03 is characterized for 1Y 4A operation from –40°C to 85°C. NC NC 2A 4Y

FUNCTION TABLE NC NC (each gate)

INPUTS OUTPUT

NC – No internal connection

logic symbol†

This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12. Pin numbers shown are for the D, J, N, and W packages.

logic diagram (positive logic)

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  1997, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
