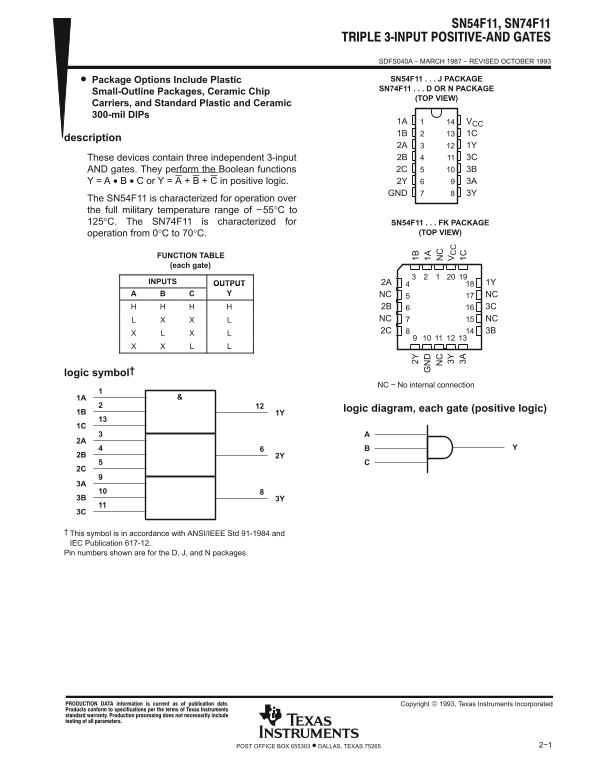

Texas Instruments SN54F11 Data Sheet
Summary
This manual details the SN54F11 and SN74F11, dual in-line package integrated circuits featuring three independent 3-input AND gates. Designed for logic operations in digital systems, these devices perform Boolean functions with positive logic. The guide covers electrical characteristics, switching speeds, and absolute maximum ratings for both military and commercial temperature ranges.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 14 |
| File Size | 627.54 KB |
| Published | June 15, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for the SN74F11?
The SN74F11 operates from 0°C to 70°C.
What is the maximum supply voltage V_CC?
The maximum recommended supply voltage V_CC is 5.5V.
What is the function of each gate in the SN74F11?
Each gate is a 3-input AND gate performing the Boolean function Y = A • B • C in positive logic.
What is the low-level output voltage (V_OL)?
V_OL is 0.5V max when V_CC = 4.5V and I_OL = 20mA.
