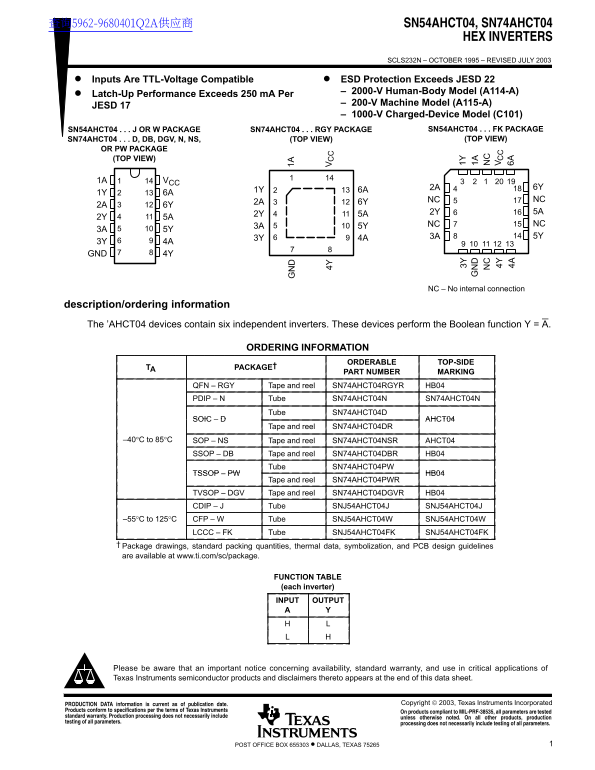

Texas Instruments SN54AHCT04, SN74AHCT04 Data Sheet

查询5962-9680401Q2A供应商 SN54AHCT04, SN74AHCT04

HEX INVERTERS

SCLS232N – OCTOBER 1995 – REVISED JULY 2003

Inputs Are TTL-Voltage Compatible ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

Latch-Up Performance Exceeds 250 m A Per

– 200-V Machine Model (A115-A)

JESD 17

– 1000-V Charged-Device Model (C101)

SN54AHCT04 J OR W PACKAGE SN74AHCT04 RGY PACKAGE SN54AHCT04 FK PACKAGE

SN74AHCT04 D, DB, DGV, N, NS, (TOP VIEW) (TOP VIEW)

OR PW PACKAGE (TOP VIEW)

1A VCC

NC NC

NC NC

3Y 4A GND 4Y

NC – No internal connection

description/ordering information The ’AHCT04 devices contain six independent inverters. These devices perform the Boolean function Y = A.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

QFN – RGY Tape and reel SN74AHCT04RGYR HB04 PDIP – N Tube SN74AHCT04N SN74AHCT04N

Tube SN74AHCT04D

SOIC AHCT04

Tape and reel SN74AHCT04DR

–40°C to 85°C SOP – NS Tape and reel SN74AHCT04NSR AHCT04

SSOP – DB Tape and reel SN74AHCT04DBR HB04

Tube SN74AHCT04PW

TSSOP PW HB04 –

Tape and reel SN74AHCT04PWR

TVSOP – DGV Tape and reel SN74AHCT04DGVR HB04

CDIP – J Tube SNJ54AHCT04J SNJ54AHCT04J

–55°C to 125°C CFP – W Tube SNJ54AHCT04W SNJ54AHCT04W

LCCC – FK Tube SNJ54AHCT04FK SNJ54AHCT04FK

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

FUNCTION TABLE (each inverter) INPUT OUTPUT

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Copyright  2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments On products compliant to MIL-PRF-38535, all parameters are tested standard warranty. Production processing does not necessarily include unless otherwise noted. On all other products, production testing of all parameters. processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
