Texas Instruments RC4560 Data Sheet
Summary
This versatile RC4560 is a high-gain, wide-bandwidth dual operational amplifier that exceeds previous models in both bandwidth and slew rate. The comprehensive manual provides detailed electrical specifications, package options (MSOP/VSSOP, PDIP, SOIC, etc.), and full design guidelines. This robust device is critically suited for professional applications, including active filters, data/telecommunications systems, audio preamplifiers, headphone amplifiers, and specialized instrumentation equipment.

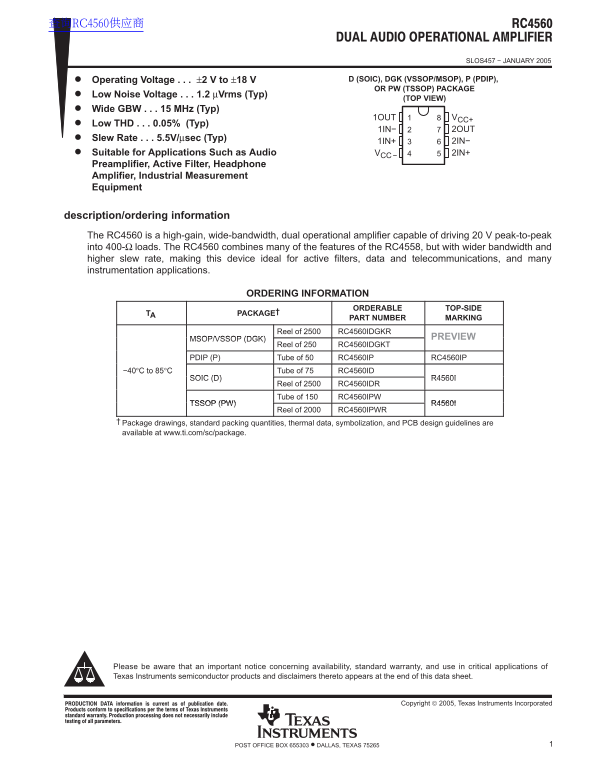

Page 1 Text Content
查询RC4560供应商
SLOS457 − JANUARY 2005
Operating Voltage ±2 V to ±18 V D (SOIC), DGK (VSSOP/MSOP), P (PDIP), OR PW (TSSOP) PACKAGE
Low Noise Voltage 1.2 µVrms (Typ)
(TOP VIEW)
Wide GBW 15 MHz (Typ)
1OUT VCC+
Low THD 0.05% (Typ)
1IN− 2OUT
Slew Rate 5.5V/µsec (Typ)
1IN+ 2IN−
Suitable for Applications Such as Audio VCC− 2IN+ Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment
description/ordering information The RC4560 is a high-gain, wide-bandwidth, dual operational amplifier capable of driving 20 V peak-to-peak into 400-Ω loads. The RC4560 combines many of the features of the RC4558, but with wider bandwidth and higher slew rate, making this device ideal for active filters, data and telecommunications, and many instrumentation applications.
ORDERING INFORMATION
ORDERABLE TOP-SIDE
TA PACKAGE†
PART NUMBER MARKING
Reel of 2500 RC4560IDGKR
MSOP/VSSOP (DGK) PREVIEW
Reel of 250 RC4560IDGKT
PDIP (P) Tube of 50 RC4560IP RC4560IP
−40°C to 85°C Tube of 75 RC4560ID
SOIC (D) R4560I
Reel of 2500 RC4560IDR Tube of 150 RC4560IPW
TSSOP (PW) R4560I
Reel of 2000 RC4560IPWR
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
!" # $ Copyright 2005, Texas Instruments Incorporated
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments RC4560 Data Sheet
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 5 |
| File Size | 76.45 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are typical applications for this high-gain amplifier?
It is ideal for active filters, data and telecommunications equipment, and instrumentation such as audio preamplifiers.
What is the recommended operating voltage range for the RC4560?
The operational supply voltage ranges from ±2 V up to ±18 V.
How high is the maximum output current rating?
The absolute maximum rated output current is ±50 mA.
Where can I find package drawings and thermal data for ordering?
Package drawings, standard packing quantities, and thermal data are available at www.ti.com/sc/package.
