Texas Instruments PTV03020W Data Sheet
Summary
The PTV03020W is a versatile nonisolated power module designed for efficient DC/DC switching regulation up to 18A. Ideal for designers building complex, multiprocessor digital systems, it accepts a 3.3V input and provides highly adjustable output voltages (0.8 V–2.5 V). The manual provides comprehensive technical specifications, application guidelines, and detailed electrical characteristics—including Auto-Track™ sequencing and overcurrent protection—ensuring reliable power delivery for advanced computing applications like servers and DSP systems.

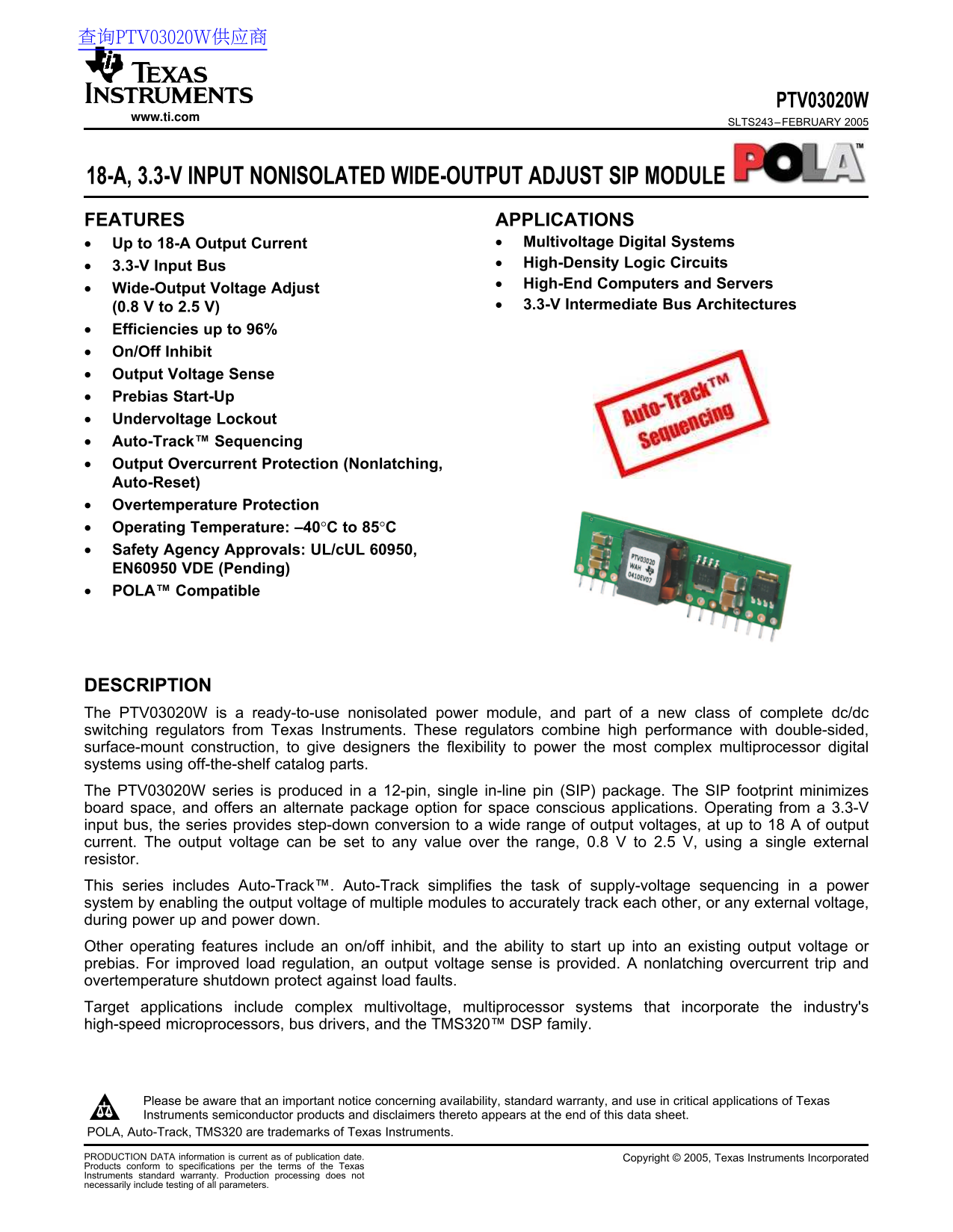

Page 1 Text Content
查询PTV03020W供应商
PTV03020W
www.ti.com
SLTS243–FEBRUARY
18-A, 3.3-V INPUT NONISOLATED WIDE-OUTPUT ADJUST SIP MODULE
FEATURES APPLICATIONS
Up to 18-A Output Current Multivoltage Digital Systems•
High-Density Logic Circuits•
3.3-V Input Bus
High-End Computers and Servers•
Wide-Output Voltage Adjust
to 2.5 V) 3.3-V Intermediate Bus Architectures(0.8
Efficiencies up to 96%
On/Off Inhibit
Output Voltage Sense
Prebias Start-Up
Undervoltage Lockout
Auto-Track™ Sequencing
Output Overcurrent Protection (Nonlatching,
Auto-Reset)
Overtemperature Protection
Operating Temperature: –40°C to 85°C
Safety Agency Approvals: UL/c UL 60950,
EN60950 VDE (Pending)
POLA™ Compatible
DESCRIPTION
The PTV03020W is ready-to-use nonisolated power module, and part of new class of complete dc/dc
switching regulators from Texas Instruments. These regulators combine high performance with double-sided,
surface-mount construction, to give designers the flexibility to power the most complex multiprocessor digital
systems using off-the-shelf catalog parts.
The PTV03020W series is produced in 12-pin, single in-line pin (SIP) package. The SIP footprint minimizes
board space, and offers an alternate package option for space conscious applications. Operating from 3.3-V
input bus, the series provides step-down conversion to wide range of output voltages, at up to of output
current. The output voltage can be set to any value over the range, 0.8 to 2.5 V, using single external
resistor.
This series includes Auto-Track™. Auto-Track simplifies the task of supply-voltage sequencing in power
system by enabling the output voltage of multiple modules to accurately track each other, or any external voltage,
during power up and power down.
Other operating features include an on/off inhibit, and the ability to start up into an existing output voltage or
prebias. For improved load regulation, an output voltage sense is provided. nonlatching overcurrent trip and
overtemperature shutdown protect against load faults.
Target applications include complex multivoltage, multiprocessor systems that incorporate the industry's
high-speed microprocessors, bus drivers, and the TMS320™ DSP family.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
POLA, Auto-Track, TMS320 are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date. Copyright 2005, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Page Summary Contents For Texas Instruments PTV03020W Data Sheet
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 19 |
| File Size | 919.52 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How is the output voltage adjusted?
The output voltage can be set to a value between 0.8 V and 2.5 V using a single external resistor.
What protection features are included for load faults?
It provides nonlatching overcurrent trip detection and overtemperature shutdown protection.
Is the PTV03020W compatible with surface-mount reflow soldering methods?
No, this product is explicitly stated as NOT compatible with surface-mount reflow solder processes.
What does the Auto-Track™ feature accomplish during power up?
It simplifies supply-voltage sequencing by enabling multiple module outputs to accurately track each other or an external voltage.
