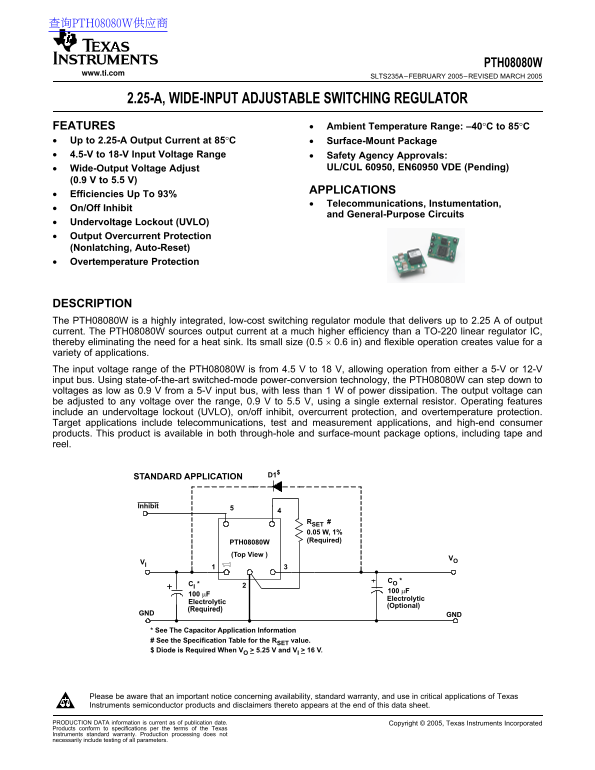

Texas Instruments PTH08080W Data Sheet

查询PTH08080W供应商

PTH08080W

www.ti.com

SLTS235A–FEBRUARY 2005–REVISED MARCH

2.25-A, WIDE-INPUT ADJUSTABLE SWITCHING REGULATOR

FEATURES Ambient Temperature Range: –40°C to 85°C

Up to 2.25-A Output Current at 85°C Surface-Mount Package

4.5-V to 18-V Input Voltage Range Safety Agency Approvals:

Wide-Output Voltage Adjust UL/CUL 60950, EN60950 VDE (Pending)•

(0.9 to 5.5 V)

APPLICATIONS

Efficiencies Up To 93%

Telecommunications, Instumentation,•

On/Off Inhibit

and General-Purpose Circuits

Undervoltage Lockout (UVLO)

Output Overcurrent Protection

(Nonlatching, Auto-Reset)

Overtemperature Protection

DESCRIPTION

The PTH08080W is highly integrated, low-cost switching regulator module that delivers up to 2.25 of output

current. The PTH08080W sources output current at much higher efficiency than TO-220 linear regulator IC,

thereby eliminating the need for heat sink. Its small size (0.5 0.6 in) and flexible operation creates value for

variety of applications.

The input voltage range of the PTH08080W is from 4.5 to V, allowing operation from either 5-V or 12-V

input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to

voltages as low as 0.9 from 5-V input bus, with less than of power dissipation. The output voltage can

be adjusted to any voltage over the range, 0.9 to 5.5 V, using single external resistor. Operating features

include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection.

Target applications include telecommunications, test and measurement applications, and high-end consumer

products. This product is available in both through-hole and surface-mount package options, including tape and

reel.

STANDARD APPLICATION D1$

Inhibit

#SET 0.05 W, 1% (Required)

PTH08080W (Top View )

Electrolytic

Electrolytic

(Optional)

(Required)

GND GND

* See The Capacitor Application Information # See the Specification Table for the R value.SET $ Diode is Required When V 5.25 V and V 16 V.O
