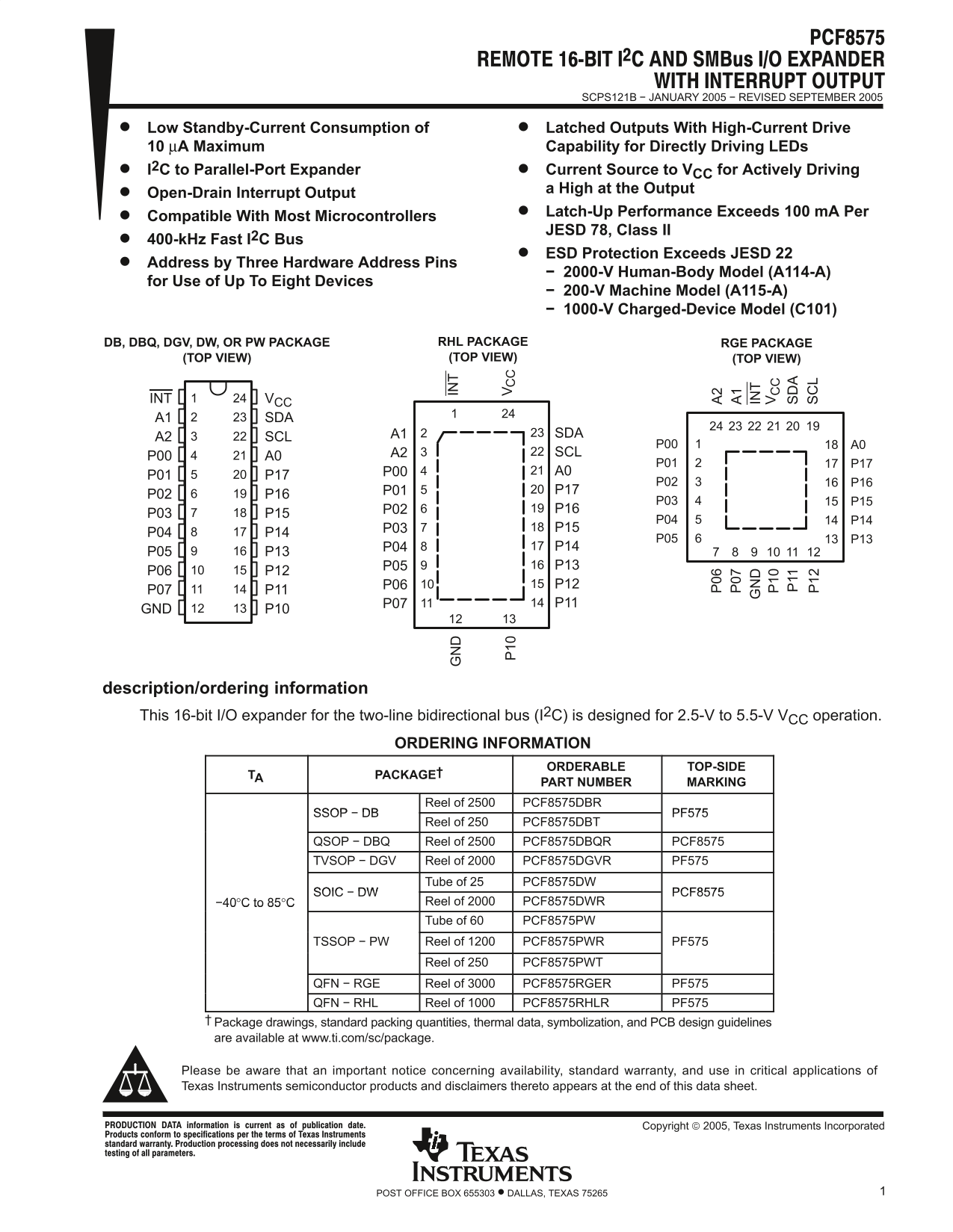

SCPS121B − JANUARY 2005 − REVISED SEPTEMBER 2005
Low Standby-Current Consumption of Latched Outputs With High-Current Drive 10 µA Maximum Capability for Directly Driving LEDs I2C to Parallel-Port Expander Current Source to VCC for Actively Driving
a High at the Output
Open-Drain Interrupt Output
Latch-Up Performance Exceeds 100 m A Per
Compatible With Most Microcontrollers
JESD 78, Class II
400-k Hz Fast I2C Bus
ESD Protection Exceeds JESD 22
Address by Three Hardware Address Pins
− 2000-V Human-Body Model (A114-A)
for Use of Up To Eight Devices
− 200-V Machine Model (A115-A) − 1000-V Charged-Device Model (C101)
DB, DBQ, DGV, DW, OR PW PACKAGE RHL PACKAGE RGE PACKAGE (TOP VIEW) (TOP VIEW) (TOP VIEW)
INT VCC
A1 SDA
A1 SDA
A2 SCL
A2 SCL IN
GND P10
description/ordering information This 16-bit I/O expander for the two-line bidirectional bus (I2C) is designed for 2.5-V to 5.5-V VCC operation.
ORDERING INFORMATION
ORDERABLE TOP-SIDE
TA PACKAGE†
PART NUMBER MARKING
Reel of 2500 PCF8575DBR
SSOP − DB PF575
Reel of 250 PCF8575DBT
QSOP − DBQ Reel of 2500 PCF8575DBQR PCF8575 TVSOP − DGV Reel of 2000 PCF8575DGVR PF575
Tube of 25 PCF8575DW
SOIC − DW PCF8575
−40°C to 85°C Reel of 2000 PCF8575DWR Tube of 60 PCF8575PW TSSOP − PW Reel of 1200 PCF8575PWR PF575 Reel of 250 PCF8575PWT
QFN − RGE Reel of 3000 PCF8575RGER PF575 QFN − RHL Reel of 1000 PCF8575RHLR PF575
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
