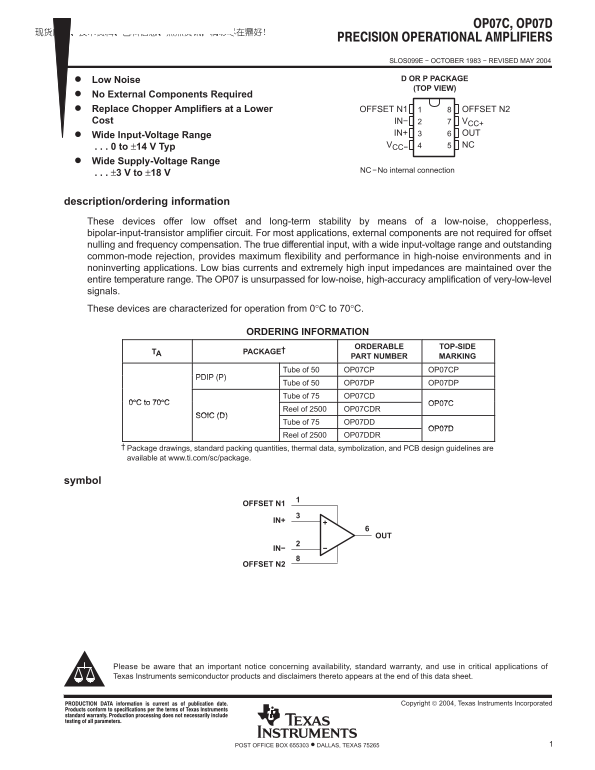

Texas Instruments OP07C OP07D Data Sheet
Summary
This high-accuracy operational amplifier delivers superior low-noise performance and long-term stability, making it ideal for amplifying very-low-level signals in challenging environments. Designed with a true differential input and outstanding common-mode rejection, this device offers maximum flexibility and robust operation even in high-noise conditions. The accompanying data sheet provides comprehensive specifications, ordering information across multiple packages (SOIC, DIP), thermal guidelines, and PCB design recommendations for professional engineers and circuit designers.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 11 |
| File Size | 276.63 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What environment makes this amplifier suitable for?
It excels in high-noise environments due to its wide input-voltage range and outstanding common-mode rejection.
Are external components necessary for basic offset nulling?
No, for most applications, external components are not required for offset nulling or frequency compensation.
What is the specified operating temperature range?
These devices are characterized for operation from 0°C to 70°C.
What limits the input voltage magnitude?
The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
