The ONET2501PA is a versatile, high-speed limiting amplifier designed for critical fiber optic communication links operating up to 2.5 Gbps. This compact, low-power component features integrated Loss of Signal (LOS) and Remote Signal Strength Indicator (RSSI) detection, ensuring reliable monitoring for data transmission systems. The accompanying manual provides detailed specifications, including operational block diagrams, offset cancellation functionality, and performance characteristics crucial for integration into high-speed networking equipment such as SONET/SDH or GbE applications. Ideal for electrical engineers designing robust, single 3.3V fiber optic infrastructure.

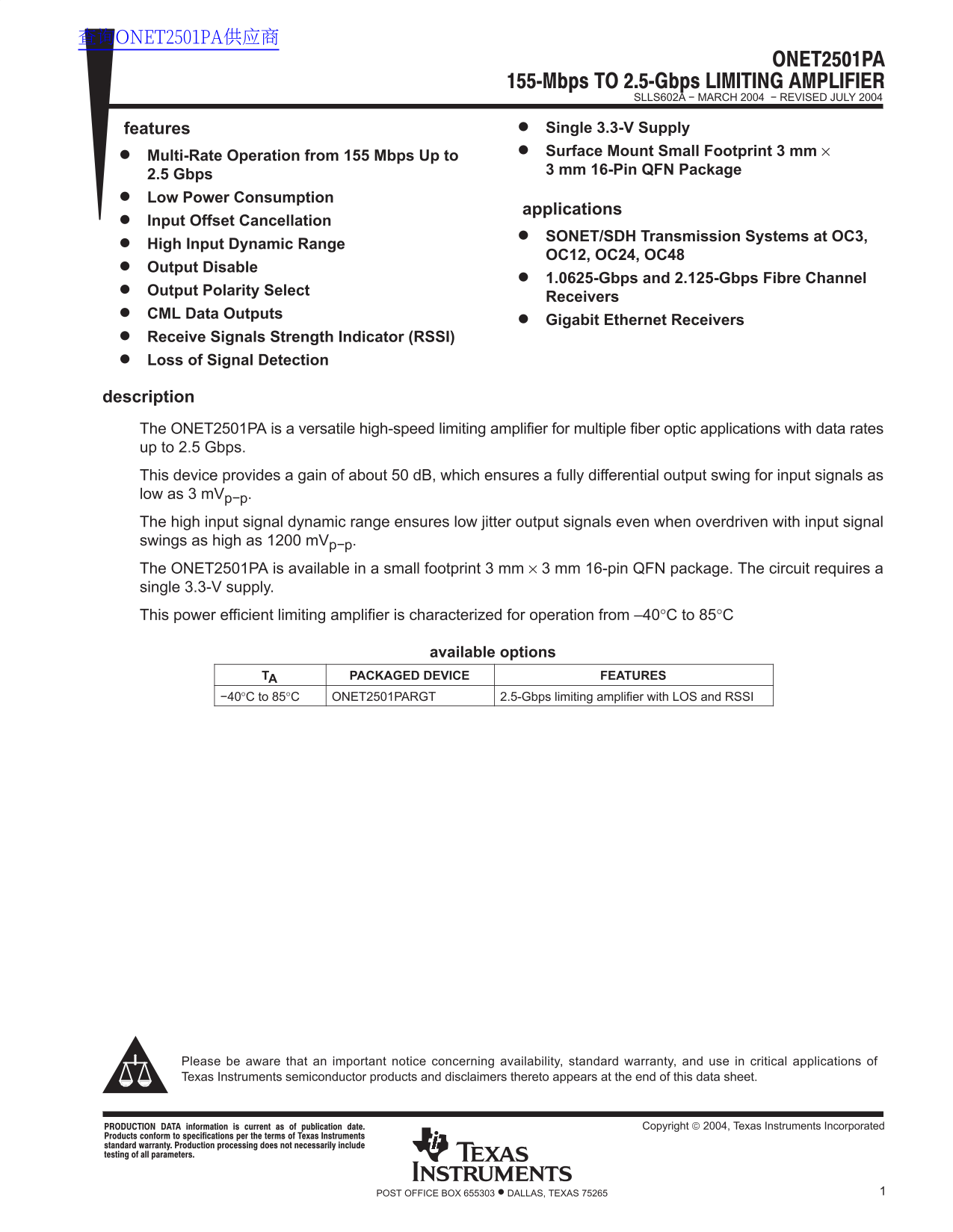

Page 1 Text Content
查询ONET2501PA供应商
SLLS602A − MARCH 2004 − REVISED JULY 2004
features Single 3.3-V Supply Surface Mount Small Footprint 3 mm ×
Multi-Rate Operation from 155 Mbps Up to
mm 16-Pin QFN Package
2.5 Gbps Low Power Consumption
applications
Input Offset Cancellation
SONET/SDH Transmission Systems at OC3,
High Input Dynamic Range
OC12, OC24, OC48
Output Disable
1.0625-Gbps and 2.125-Gbps Fibre Channel
Output Polarity Select
Receivers
CML Data Outputs
Gigabit Ethernet Receivers
Receive Signals Strength Indicator (RSSI) Loss of Signal Detection
description The ONET2501PA is a versatile high-speed limiting amplifier for multiple fiber optic applications with data rates up to 2.5 Gbps. This device provides a gain of about 50 d B, which ensures a fully differential output swing for input signals as low as 3 m Vp−p. The high input signal dynamic range ensures low jitter output signals even when overdriven with input signal swings as high as 1200 m Vp−p. The ONET2501PA is available in a small footprint 3 mm × 3 mm 16-pin QFN package. The circuit requires a single 3.3-V supply. This power efficient limiting amplifier is characterized for operation from –40°C to 85°C
available options
TA PACKAGED DEVICE FEATURES −40°C to 85°C ONET2501PARGT 2.5-Gbps limiting amplifier with LOS and RSSI
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments ONET2501PA Data Sheet
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 8 |
| File Size | 180.27 KB |
| Published | July 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum data rate the ONET2501PA can handle?
It functions as a limiting amplifier for multiple fiber optic applications with data rates up to 2.5 Gbps.
What power supply voltage does this device require?
The circuit requires a single 3.3-V supply voltage (3.3-V ±10%).
How are signal loss and input strength monitored?
It includes dedicated Loss of Signal (LOS) and Receive Signals Strength Indicator (RSSI) detection circuitry.
What is the required physical footprint for installation?
The device uses a small footprint 3 mm × 3 mm 16-pin QFN Package.
