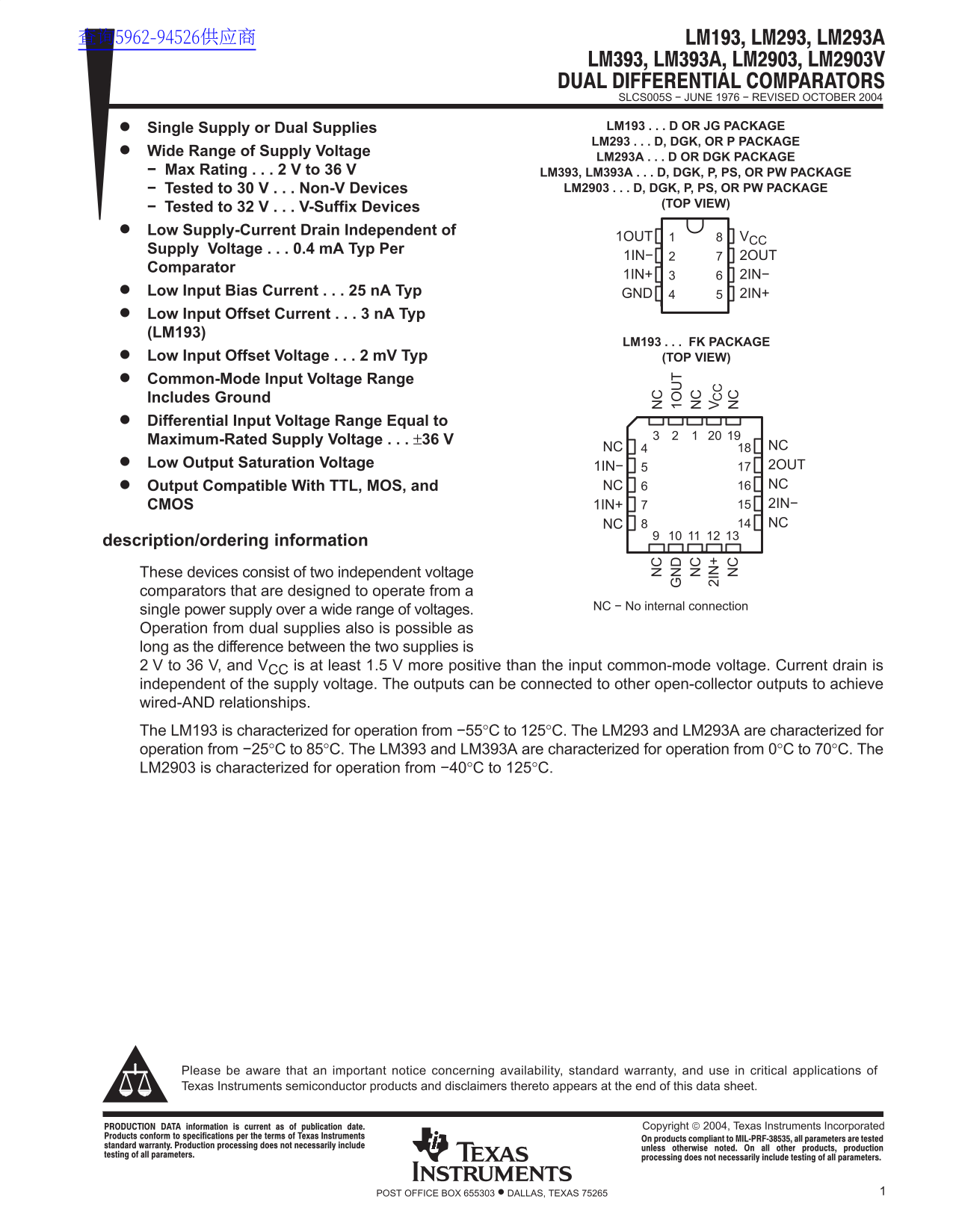

Page 1 Text Content
SLCS005S − JUNE 1976 − REVISED OCTOBER 2004
Single Supply or Dual Supplies LM193 D OR JG PACKAGE LM293 D, DGK, OR P PACKAGE
Wide Range of Supply Voltage
LM293A D OR DGK PACKAGE
− Max Rating 2 V to 36 V LM393, LM393A D, DGK, P, PS, OR PW PACKAGE
− Tested to 30 V Non-V Devices LM2903 D, DGK, P, PS, OR PW PACKAGE
(TOP VIEW)
− Tested to 32 V V-Suffix Devices Low Supply-Current Drain Independent of
1OUT VCC
Supply Voltage 0.4 m A Typ Per
1IN− 2OUT
Comparator
1IN+ 2IN−
Low Input Bias Current 25 n A Typ GND 2IN+ Low Input Offset Current 3 n A Typ (LM193)
LM193 FK PACKAGE
Low Input Offset Voltage 2 m V Typ (TOP VIEW) Common-Mode Input Voltage Range Includes Ground Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36 V
NC NC
Low Output Saturation Voltage 1IN− 2OUT
Output Compatible With TTL, MOS, and NC NC CMOS 1IN+ 2IN− NC NC
description/ordering information These devices consist of two independent voltage comparators that are designed to operate from a
NC − No internal connection
single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is
independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
The LM193 is characterized for operation from −55°C to 125°C. The LM293 and LM293A are characterized for operation from −25°C to 85°C. The LM393 and LM393A are characterized for operation from 0°C to 70°C. The LM2903 is characterized for operation from −40°C to 125°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LM193 LM293 LM293A LM393 LM393A LM2903 LM2903V Owner's Manual User Guide
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 18 |
| File Size | 390.49 KB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the standard operating voltage range for these devices?
Operation from dual supplies is possible with a difference between two supplies of 2 V to 36 V.
Which part number has the widest temperature rating?
The LM193 is characterized for operation from −55°C to 125°C. The LM2903 is rated from −40°C to 125°C.
Are the outputs compatible with CMOS logic?
Yes, the outputs can be connected to other open-collector outputs and are compatible with TTL, MOS, and CMOS.
What determines current drain on these comparators?
The current drain is stated as CC independent of the supply voltage.
